Product Summary

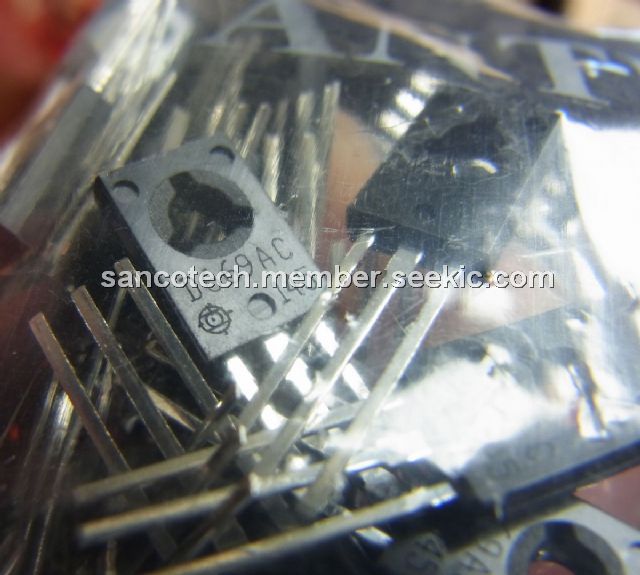

The 2SD669AC is an NPN Epitaxial Planar Transistor used in many applications.
Parametrics
2SD669AC absolute maximum ratings: (1)Collector-Emitter Voltage: 180V; (2)Collector-Emitter Voltage: 160V; (3)Emitter-Base Voltage: 5V; (4)Collector Current: 1.5A; (5)Power Disspation: 1W; (6)Junction Temperature: 150 ℃; (7)Storage Temperature: -55 to +150℃.
Features
2SD669AC features: (1)Collector-Emitter Breakdown Voltage: 180V; (2)Collector-Emitter Breakdown Voltage:160V; (3)Collector-Emitter Breakdown Voltage:5V; (4)Collector Cutoff Current:10μA; (5)Collector Cutoff Current:10mA.
Diagrams
 |
