Product Summary

The L-117EGW is a 2x5mm BI-COLOR RECTANGULAR LED LAMP. The L-117EGW is made with Gallium Arsenide Phosphide on Gallium PhosphideOrange Light Emitting Diode and with GalliumPhosphide Green Light Emitting Diode.

Parametrics

L-117EGW absolute maximum ratings: (1)power dissipation: 105mW; (2)DC Forward current: 25- 30 mA; (3)Peak forward current: 140- 160 mA; (4)Reverse voltage: 5V; (5)Operating/ storage temperature: -40℃ to +85℃; (6)Lead solder temperature: 260℃ for 5 seconds.

Features

L-117EGW features: (1)uniform light output; (2)suitable for level indicator; (3)low power consumption; (4)milky white diffusion lens; (5)super bright version available; (6)L.C. compatible; (7)long life- solid state reliability.

Diagrams

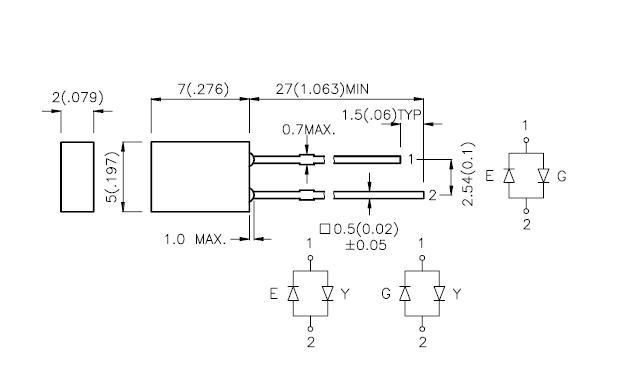

L-117EGW package dimensions
