Product Summary
The BAS21J is a Single high-speed switching diode, encapsulated in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package. The applications of the BAS21J include High-speed switching, Voltage clamping, General-purpose switching and Reverse polarity protection.
Parametrics
BAS21J absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 300 V; (2)VR, reverse voltage: 300 V; (3)IF, forward current: 250 mA; (4)IFRM, repetitive peak forward current: 1A; (5)IFSM, non-repetitive peak forward current: 2.3 A; (6)Ptot, total power dissipation: 550 mW; (7)Tj, junction temperature: 150℃; (8)Tamb, ambient temperature: -65 to +150℃; (9)Tstg, storage temperature: -65 to +150℃.
Features
BAS21J features: (1)High switching speed: trr ≤ 50 ns; (2)Low leakage current; (3)Repetitive peak reverse voltage: VRRM ≤ 300 V; (4)Excellent coplanarity and improved thermal behavior; (5)Low capacitance: Cd ≤ 2pF; (6)Reverse voltage: VR ≤ 300 V; (7)Very small and ?at lead SMD plastic package.

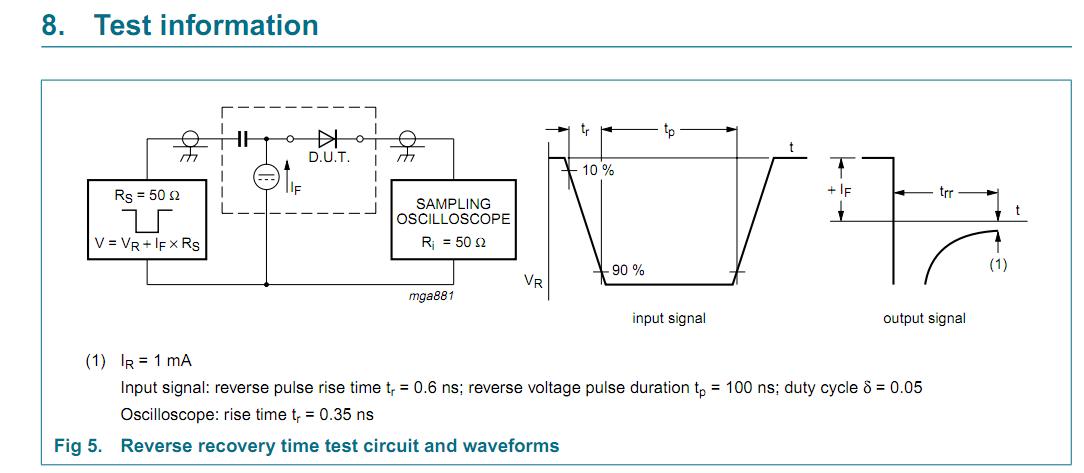

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAS21J,115 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) SNGL SWITCHING DIODE |
Data Sheet |
|
|
||||||||||||
 |
BAS21J T/R |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) SNGL SWITCHING DIODE |
Data Sheet |
Negotiable |
|
||||||||||||
