Product Summary
The NFS25-7608 is a 25W universal input AC/DC power supply. The NFS25-7608 provides 25W of output power with free air convection cooling which can be boosted to 30W with 20CFM of air. Standard features include OVP and short circuit protection. The NFS25-7608, with full international safety approval and the CE mark, meets conducted emissions EN55022 level A. The NFS25-7608 is designed for use in low power data networking, computer, telecom and industrial applications such as wireless switchers, hubs, POS terminals, PABX’s and machine control.
Parametrics
NFS25-7608 absolute maximum ratings: (1)Number of Outputs: 3; (2)Voltage - Output: 5.1V, ±12V; (3)Voltage - Input: 85 ~ 264VAC; (4)Output - 1 @ Current (Max): 5.1 VDC @ 2A; (5)Output - 2 @ Current (Max): 12 VDC @ 1.5A; (6)Output - 3 @ Current (Max): -12 VDC @ 200mA; (7)Power (Watts): 25W; (8)Power Supply Type: Switching (Open Frame); (9)Operating Temperature: 0 ~ 50℃; (10)Efficiency: 70%; (11)Power (Watts) - Max: 25W; (12)Line Regulation: ±0.2%, ±1%; (13)Load Regulation: ±2%, ±5%.
Features
NFS25-7608 features: (1)5.0 × 3.0 × 1.2 inch package (1U applications); (2)Industry standard package; (3)Overvoltage and short circuit protection; (4)25W with free air convection cooling; (5)EN55022, EN55011 conducted emissions level A; (6)UL, VDE and CSA safety approvals.

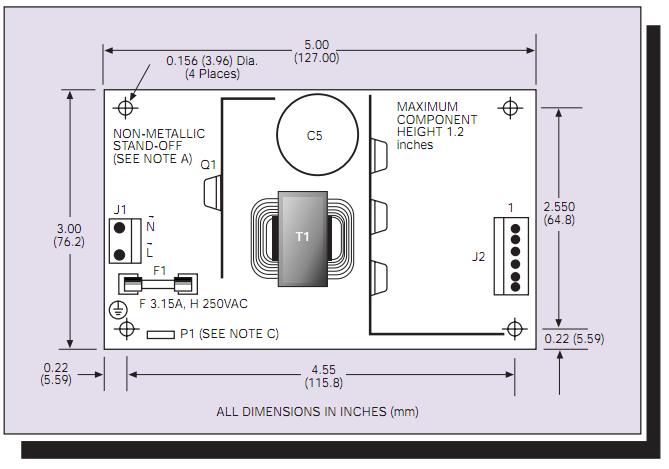

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
NFS25-7608 |
PS SWITCHER 5.1/12/-12V 25W |
Data Sheet |
Negotiable |
|
||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
NFS25-7608 |
PS SWITCHER 5.1/12/-12V 25W |
Data Sheet |
Negotiable |
|
||||||
NFS25-7628 |
PS SWITCHER 5.1/12/-12V 25W |
Data Sheet |
Negotiable |
|
||||||
NFS25-7629 |
PS SWITCHER 5.1/12V 25W |
Data Sheet |
Negotiable |
|
