Product Summary

The ICM7555MTV883B is a high reliability general purpose timer. It is a stable controller capable of producing accurate time delay, operating independently of each other, sharing only V+ and GND.

Parametrics

ICM7555MTV883B absolute maximum ratings: (1)Supply voltage: 18 V; (2)Input voltage trigger, control voltage, threshold: V+ +0.3 V to V- -0.3 V; (3)Reset output current: 100 mA; (4)Power dissipation : 200 mW; (5)Storage temperature: -65℃ to +150℃; (6)Lead temperature: +300℃; (7)Operating temperature range: -55℃ to +125℃.

Features

ICM7555MTV883B features: (1)Exact Equlvalent In most case for SE/NE555/556 or TLC555/556; (2)Low Supply Current-60μA, Typ.(ICM7555) 120μA Typ. (ICM7556); (3)Extremely Low Trigger, Threshold and Reset Current-20pA Typical; (4)High Speed Operation- 1MHz Typical; (5)Wide Operation Supply Voltage Range Guaranteed 2 to 18 Volts; (6)Normal Reset Function- No Crowbarring of Supply During Output.

Diagrams

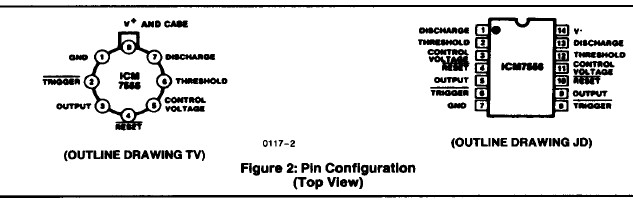

ICM7555MTV883B pin configuration
