Product Summary

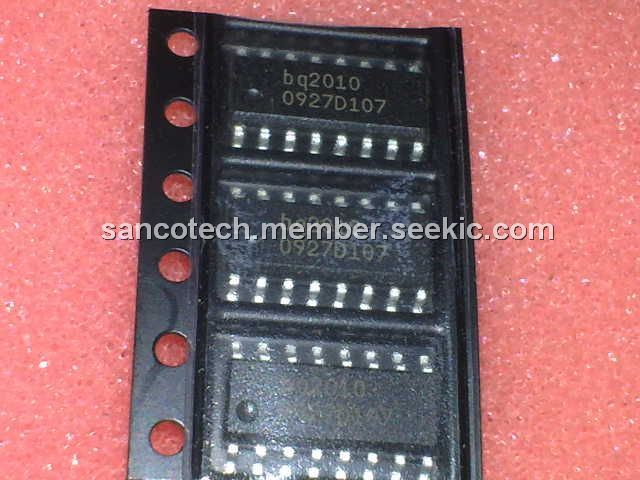

The BQ2010SN-D107 is a Gas Gauge IC. It is intended for battery-pack or in-system installation to maintain an accurate record of a battery’s available charge. The BQ2010SN-D107 monitors a voltage drop across a sense resistor connected in series between the negative battery terminal and ground to determine charge and discharge activity of the battery.
Parametrics
BQ2010SN-D107 absolute maximum ratings: (1)VCC Relative to VSS: -0.3 to +7.0 V; (2)All other pins Relative to VSS: -0.3 to +7.0 V; (3)REF Relative to VSS: -0.3 +8.5 V; (4)VSR Relative to VSS: -0.3 +7.0 V; (5)TOPR Operating temperature: 0℃ to +70℃.
Features
BQ2010SN-D107 features: (1)Conservative and repeatable measurement of available charge in rechargeable batteries; (2)Designed for battery pack integration Integrate within a system or as a stand-alone device; (3)Measurements compensated for current and temperature; (4)Self-discharge compensation using internal temperature sensor.

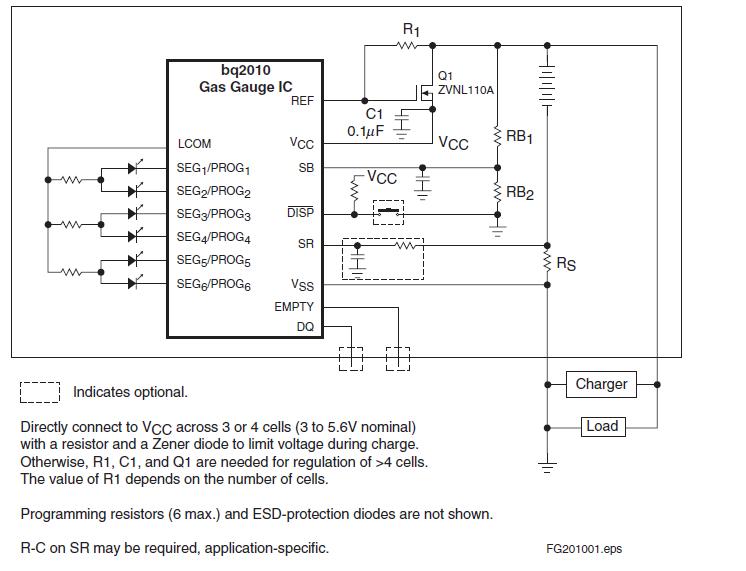

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BQ2010SN-D107 |
Texas Instruments |
Battery Management NiCd/NiMH Gas Gauge |
Data Sheet |
|
|
||||||||||||
|
BQ2010SN-D107G4 |
Texas Instruments |
Battery Management NiCd/NiMH Gas Gauge |
Data Sheet |
|
|
||||||||||||
|
BQ2010SN-D107TRG4 |
Texas Instruments |
Battery Management NiCd/NiMH Gas Gauge |
Data Sheet |
|
|
||||||||||||
|
BQ2010SN-D107TR |
Texas Instruments |
Battery Management NiCd/NiMH Gas Gauge |
Data Sheet |
|
|
||||||||||||
