Product Summary
The ADF4153BRUZ is a fractional-N frequency synthesizer that implements local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. The ADF4153BRUZ consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider.
Parametrics
ADF4153BRUZ absolute maximum ratings: (1)VDD to GND: -0.3 V to +4 V; (2)VDD to VDD: -0.3 V to +0.3 V; (3)VP to GND: -0.3 V to +5.8 V; (4)VP to VDD: -0.3 V to +5.8 V; (5)Digital I/O Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Analog I/O Voltage to GND: -0.3 V to VDD + 0.3 V; (7)REFIN, RFIN to GND: -0.3 V to VDD + 0.3 V; (8)Operating Temperature Range Industrial (B Version): -40℃ to +85℃; (9)Operating Temperature Range Extended (Y Version): -40℃ to +125℃; (10)Storage Temperature Range: -65℃ to +125℃; (11)Maximum Junction Temperature: 150℃; (12)TSSOP θJA Thermal Impedance: 112℃/W; (13)LFCSP θJA Thermal Impedance (Paddle Soldered): 30.4℃/W; (14)Reflow Soldering Peak Temperature: 260℃; (15)Time at Peak Temperature: 40 sec; (16)Maximum Junction Temperature: 150℃.
Features
ADF4153BRUZ features: (1)RF bandwidth to 4 GHz; (2)2.7 V to 3.3 V power supply; (3)Separate VP allows extended tuning voltage; (4)Y version available: .40°C to +125°C; (5)Programmable fractional modulus; (6)Programmable charge pump currents; (7)3-wire serial interface; (8)Analog and digital lock detect; (9)Power-down mode; (10)Pin-compatible with ADF4110/ADF4111/ADF4112/ADF4113 and ADF4106; (11)Consistent RF output phase; (12)Loop filter design possible with ADIsimPLL; (13)Qualified for automotive applications.

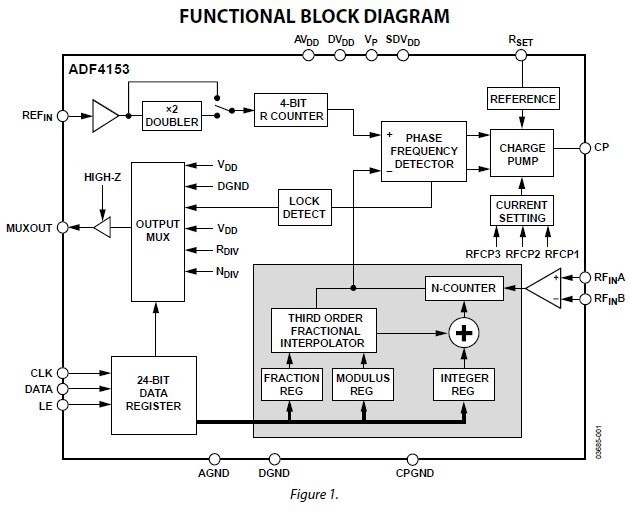

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADF4153BRUZ |
|
IC SYNTH PLL RF F-N FREQ 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADF4153BRUZ-RL |
|
IC FRACTION-N FREQ SYNTH 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADF4153BRUZ-RL7 |
|
IC FRACTION-N FREQ SYNTH 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||
