Product Summary

The BSM300GA100D is an IGBT module.

Parametrics

BSM300GA100D absolute maximum ratings: (1)VCE: 1000V; (2)VCGR: 1000V; (3)VGE: ±20V; (4)IC: 400A; (5)IC puls: 800A; (6)Tj, Tstg: -55 to 150℃; (7)Ptot: 2500W.

Features

BSM300GA100D features: (1)Power module; (2)Single switch; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate; (5)Package outlines/circuit diagram.

Diagrams

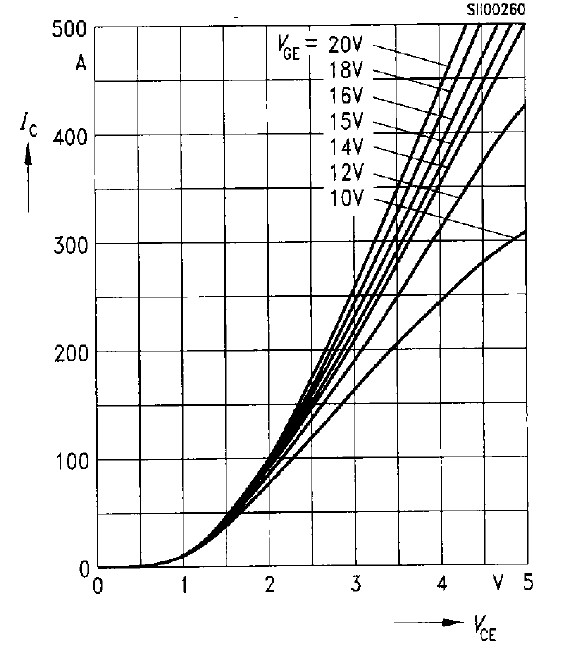

BSM300GA100D diagram
