Product Summary

The BS801B is a 1 key touch key device which can detect human body contact using external touch pad. The high level of the BS801B integration enable applications to be implemented with a minimum number of external components.

Parametrics

BS801B absolute maximum ratings: (1)Supply Voltage: VSS -0.3V to VSS+6.0V; (2)Storage Temperature: -50℃ to 125℃; (3)Input Voltage: VSS-0.3V to VDD+0.3V; (4)Operating Temperature: -40℃ to 85℃; (5)IOL Total: 80mA; (6)IOH Total: -80mA; (7)Total Power Dissipation: 500mW.

Features

BS801B features: (1)Operating voltage: 2.2V~5.5V; (2)Ultra low standby current: 1.5μA at 3V; (3)Auto-calibration; (4)High reliability touch detections; (5)High PSRR; (6)Output type: Level-hold or Toggle; (7)One-key or Any-key Wake-up Mode; (8)Wake-up Mode set by pins or serial command; (9)Open drain NMOS output; (10)Key status monitored using pins or serial bus.

Diagrams

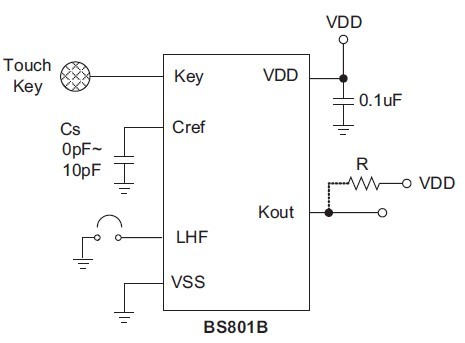

BS801B pin configuration
