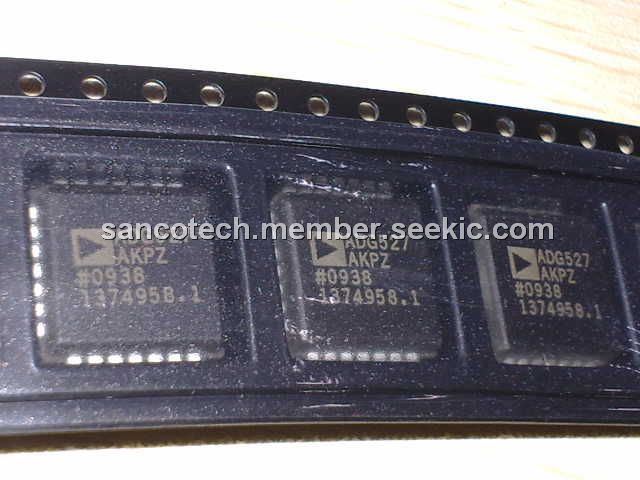

Product Summary
The ADG527AKPZ is a CMOS latched 8-/16-channel analog multiplexer. The ADG527AKPZ is a CMOS monolithic analog multiplexer with 16 single channels and dual 8 channels, respectively. On-chip latches facilitate microprocessor interfacing. The ADG527AKPZ switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG527AKPZ switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.
Parametrics
ADG527AKPZ absolute maximum ratings: (1)VDD to VSS: 44 V; (2)VDD to GND: 25 V; (3)VSS to GND: -25 V; (4)Analog Inputs1 Voltage at Sx or Dx Pins: VSS . 2 V to VDD + 2V or 20 mA, whichever occurs first; (5)Continuous Current, Sx or Dx Pins: 20 mA; (6)Pulsed Current, Sx or Dx Pins 1 ms Duration, 10% Duty Cycle: 40 mA; (7)Digital Inputs Voltage at A, EN, WR, RS: VSS . 4 V to VDD + 4 V or 20 mA, whichever occurs first.
Features
ADG527AKPZ features: (1)44 V supply maximum rating; (2)VSS to VDD analog signal range; (3)Single- or dual-supply specifications; (4)Wide supply ranges (10.8 V to 16.5 V); (5)Microprocessor compatible (100 ns WR pulse); (6)Extended plastic temperature range (.40 to +85℃); (7)Low leakage (20 pA typical); (8)Low power dissipation (28 mW maximum); (9)Available in PDIP, CERDIP, SOIC, and PLCC packages; (10)Superior alternative to DG526 and DG527.

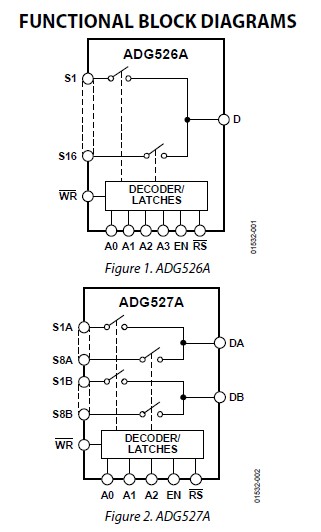

Diagrams
