Product Summary

The GP2Y0D02YK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. The output voltage of the GP2Y0D02YK0F high in case an object exists in the specified distance range. So the GP2Y0D02YK0F can also be used as proximity sensor.

Parametrics

GP2Y0D02YK0F absolute maximum ratings: (1)Supply voltage VCC: -0.3 V to +7 V; (2)Output terminal voltage VO: -0.3 V to VCC+0.3 V; (3)Operating temperature Topr: -10℃ to +60℃; (4)Storage temperature Tstg: -40℃ to +70℃.

Features

GP2Y0D02YK0F features: (1)Digital output type; (2)Detecting distance: Typ. 80 cm; (3)Package size: 29.5×13×21.6 mm; (4)Consumption current: Typ. 33 mA; (5)Supply voltage: 4.5 to 5.5 V.

Diagrams

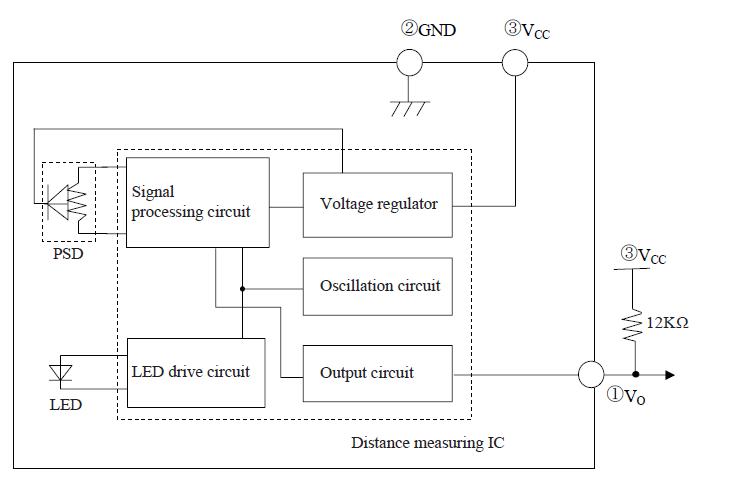

GP2Y0D02YK0F block diagram
