Product Summary

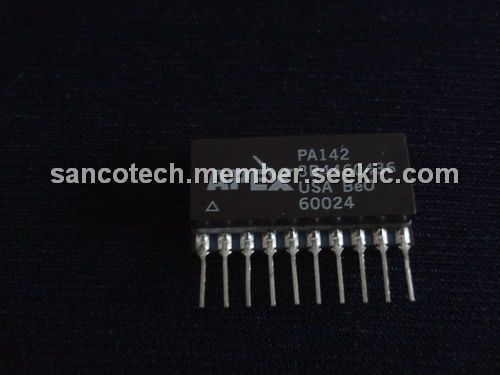

The PA142 is a high voltage monolithic MOSFET operational amplifier achieving performance features previously found only in hybrid designs while increasing reliability. The PA142 is protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitations and can be observed with all type loads by choosing an appropriate current limiting resistor. The PA142 provides the user flexibility in choosing optimum gain and bandwidth for the application. The PA142 is packaged in APEX’s hermetic ceramic SIP10 package.

Parametrics

PA142 absolute maximum ratings: (1)Supply voltage, +VS to –VS: 350V; (2)Output current, continuous within SOA: 60A; (3)Power dissipation, continuous @ TC = 25℃: 9W; (4)Input voltage, differential: ±16 V; (5)Input voltage, common mode: ±VS; (6)Temperature, pin solder – 10 sec: 220℃; (7)Temperature, junction: 150℃; (8)Temperature range, powered: –40℃ to +125℃.

Features

PA142 features: (1)Monolithic mos technology; (2)Low cost; (3)High voltage operation- 350V; (4)Low quiescent current- 2mA; (5)No second breakdown; (6)High output current- 120 mA PEAK.

Diagrams

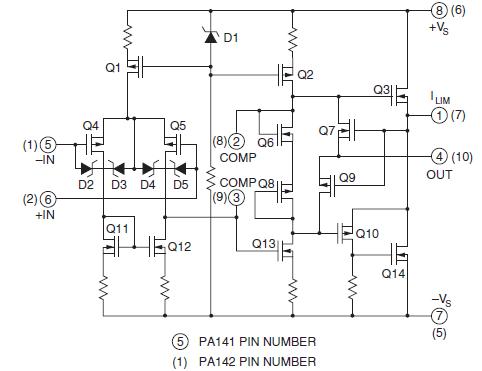

PA142 block diagram
