Product Summary

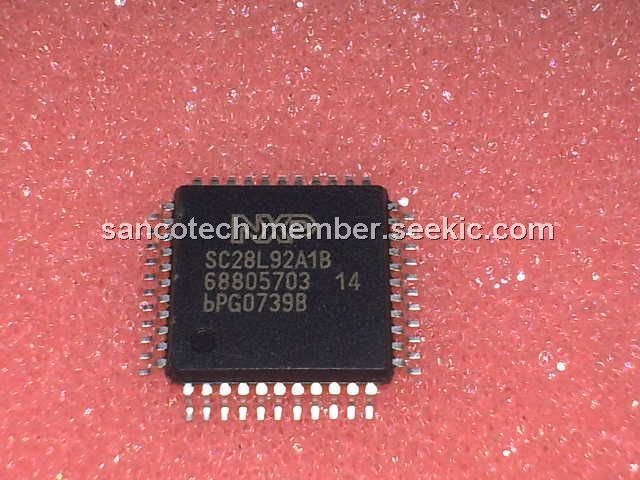

The SC28L92A1B is a pin and function replacement for the SCC2692 and SC26C92 operating at 3.3 V or 5 V supply with added features and deeper FIFOs. Its configuration on power-up is that of the SC26C92. The differences of the SC28L92A1B from the SCC2692 and SC26C92 are: 16 character receiver, 16 character transmit FIFOs, watchdog timer for each receiver, mode register 0 is added, extended baud rate and overall faster speeds, programmable receiver and transmitter interrupts. The NXP Semiconductors SC28L92A1B Dual Universal Asynchronous Receiver/Transmitter (DUART) is a single-chip CMOS-LSI communications device that provides two full-duplex asynchronous receiver/transmitter channels in a single package. It interfaces directly with microprocessors and may be used in a polled or interrupt driven system with modem and DMA interface.

Parametrics

SC28L92A1B absolute maximum ratings: (1)Tamb, ambient temperature: -40 to +85 ℃; (2)Tstg, storage temperature: -65 to +150 ℃; (3)VCC, voltage from VCC to GND: -0.5 to +7.0 V; (4)VS, voltage from any pin to GND: -0.5 to VCC + 0.5 V; (5)PD, package power dissipation: PLCC44: 2.4 W max; QFP44: 1.78 W max; HVQFN48: 0.5 W max; (6)Pder, dissipation derating factor above 25 ℃: PLCC44: 19 mW/℃ max; QFP44: 14 mW/℃ max; HVQFN48: 28 mW/℃ max.

Features

SC28L92A1B features: (1)Member of IMPACT family: 3.3 V to 5.0 V, -40 ℃ to +85 ℃ and 68xxx or 80xxx bus interface for all devices; (2)Dual full-duplex independent asynchronous receiver/transmitters; (3)16 character FIFOs for each receiver and transmitter; (4)Piprogramming selects 68xxx or 80xxx bus interface; (5)Parity, framing, and overruerror detection; (6)False start bit detection; (7)Line break detectioand generation; (8)Maximum data transfer rates: 1× -1 Mbit/s, 16× -1 Mbit/s; (9)Automatic wake-up mode for multi-drop applications; (10)Start-end break interrupt/status; (11)Detects break which originates ithe middle of a character; (12)On-chip crystal oscillator; (13)Power-dowmode; (14)Receiver time-out mode; (15)Single 3.3 V or 5 V power supply; (16)Powers up to emulate SC26C92.

Diagrams

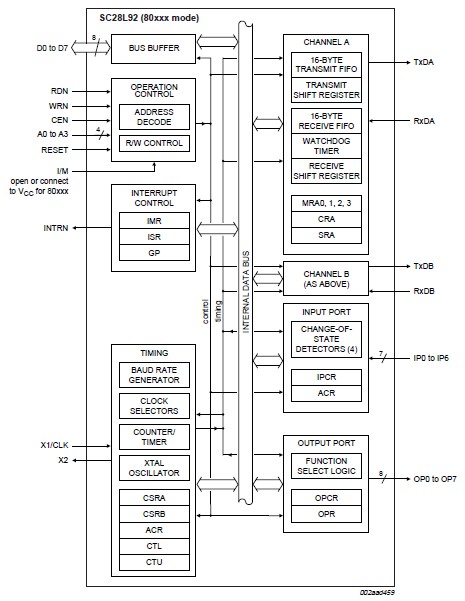

SC28L92A1B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SC28L92A1B
SC28L92A1B

NXP Semiconductors

UART Interface IC UART DUAL W/FIFO

Data Sheet

Negotiable
SC28L92A1B,528
SC28L92A1B,528

NXP Semiconductors

UART Interface IC 3V-5V 2CH UART INTEL/MOT INTRF

Data Sheet

0-1: $6.02
1-25: $5.69
25-100: $5.56
100-250: $5.13
SC28L92A1B,557
SC28L92A1B,557

NXP Semiconductors

UART Interface IC UART DUAL W/FIFO

Data Sheet

0-1: $5.17
1-25: $4.41
25-100: $4.19
100-250: $4.07
250-480: $4.07
SC28L92A1B,551
SC28L92A1B,551

NXP Semiconductors

UART Interface IC IC UART DUAL W/FIFO

Data Sheet

0-52: $5.82
52-100: $5.36
100-250: $4.88
250-500: $4.57
SC28L92A1BS,528
SC28L92A1BS,528

NXP Semiconductors

UART Interface IC 3V-5V 1CH UART

Data Sheet

0-3226: $3.72
3226-4000: $3.72
SC28L92A1BS
SC28L92A1BS

NXP Semiconductors

UART Interface IC 3V-5V 1CH UART INTEL/MOT INTRF

Data Sheet

Negotiable
SC28L92A1BS,557
SC28L92A1BS,557

NXP Semiconductors

UART Interface IC 3V-5V 1CH UART

Data Sheet

0-1915: $3.84
1915-2450: $3.84
SC28L92A1BS,551
SC28L92A1BS,551

NXP Semiconductors

UART Interface IC 3V-5V 1CH UART

Data Sheet

0-317: $4.65
317-500: $4.35
500-1000: $3.84
