Product Summary
The MAX791CPE is a microprocessor (μP) supervisory circuit which reduces the complexity and number of components needed to monitor power-supply and battery-control functions in μP systems. The 50μA supply current makes the MAX791CPE ideal for use in portable equipment, while the 6ns chip-enable propagation delay and 250mA output capability (25mA in battery-backup mode) make it suitable for larger, higher-performance equipment. The MAX791CPE comes in 16-pin DIP, TSSOP, and narrow SO packages.
Parametrics
MAX791CPE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)VBATT: -0.3V to + 6V; (3)All Other Inputs: -0.3V to (VOUT + 0.3V); (4)VCC Peak: 1.0A; (5)VCC Continuous: 250mA; (6)VBATT Peak: 250mA; (7)VBATT Continuous: 25mA; (8)GND, BATT ON: 100mA; (9)All Other Outputs: 25mA.
Features
MAX791CPE features: (1)Precision 4.65V Voltage Monitoring; (2)200ms Power-OK/Reset Time Delay; (3)Independent Watchdog Timer Preset or Adjustable; (4)1μA Standby Current; (5)Power Switching 250mA Output in VCC Mode; (6)Power Switching 25mA Output in Battery-Backup Mode; (7)On-Board Gating of Chip-Enable Signals; (8)Memory Write-Cycle Completion; (9)6ns CE Gate Propagation Delay; (10)MaxCap or SuperCap Compatible; (11)Voltage Monitor for Power-Fail or Low-Battery Warning; (12)Backup-Battery Monitor; (13)Guaranteed RESET Valid to VCC = 1V.

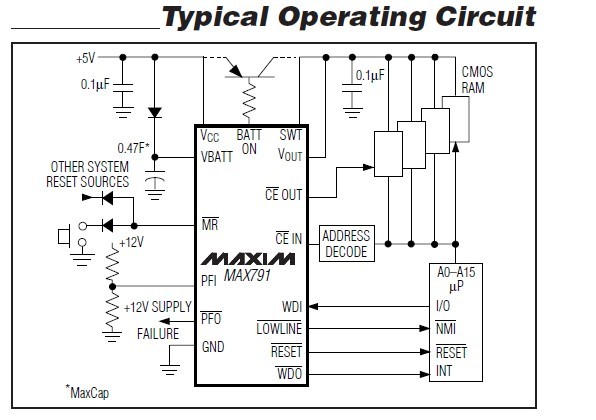

Diagrams

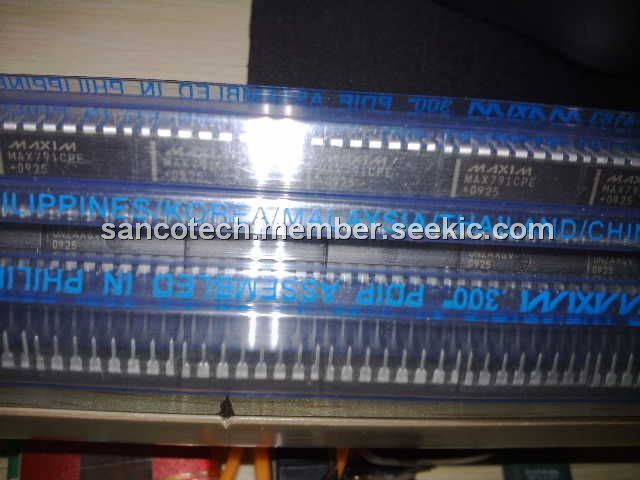

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX791CPE |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX791CPE+ |
Maxim Integrated Products |
Supervisory Circuits MPU Supervisor |
Data Sheet |
|
|
||||||||||||
