Product Summary

The TIP32A is a complementary silicon plastic power transistor designed for use in general purpose amplifier and switching applications.

Parametrics

TIP32A absolute maximum ratings: (1)Collector–Emitter Voltage, VCEO: 100 Vdc; (2)Collector–Base Voltage, VCB: 100 Vdc; (3)Emitter–Base Voltage, VEB: 5.0 Vdc; (4)Collector Current, Continuous, IC: 3.0Adc, Peak: 5.0Adc; (5)Base Current, IB: 1.0 Adc; (6)Total Power Dissipation, PD: 2.0Watts at TC = 25℃; 0.016W/℃ when Derate above 25℃; (7)Unclamped Inductive Load Energy, E: 32 mJ; (8)Operating and Storage Junction Temperature Range, TJ, Tstg: –65 to +150℃.

Features

TIP32A features: (1)Collector–Emitter Saturation Voltage : VCE(sat) = 1.2 Vdc (Max) @ IC = 3.0 Adc; (2)Collector–Emitter Sustaining Voltage: VCEO(sus) = 100 Vdc (Min); (3)High Current Gain: Bandwidth Product fT = 3.0 MHz (Min) @ IC = 500 mAdc; (4)Compact TO-220 AB Package.

Diagrams

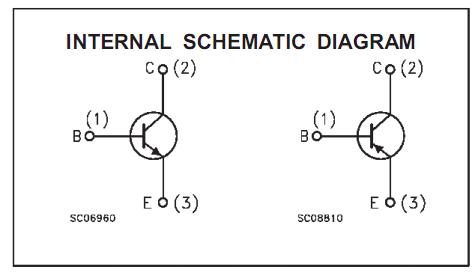

TIP32A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TIP32A
TIP32A

STMicroelectronics

Transistors Bipolar (BJT) PNP Gen Pur Power

Data Sheet

0-1: $0.35
1-10: $0.30
10-100: $0.23
100-250: $0.20
TIP32A-BP
TIP32A-BP

Micro Commercial Components (MCC)

Transistors Bipolar (BJT) PNP -60V -3A 40W

Data Sheet

0-1: $0.41
1-10: $0.32
10-25: $0.27
25-100: $0.25
TIP32AG
TIP32AG

ON Semiconductor

Transistors Bipolar (BJT) 3A 60V 40W PNP

Data Sheet

0-1: $0.32
1-25: $0.28
25-100: $0.20
100-500: $0.17
TIP32A-S
TIP32A-S

Bourns

Transistors Bipolar (BJT) 60V 3A PNP

Data Sheet

0-15000: $0.29
15000-20200: $0.29
TIP32ATU
TIP32ATU

Fairchild Semiconductor

Transistors Bipolar (BJT) PNP Epitaxial Sil

Data Sheet

0-1: $0.25
1-25: $0.22
25-100: $0.20
100-250: $0.18
