Product Summary

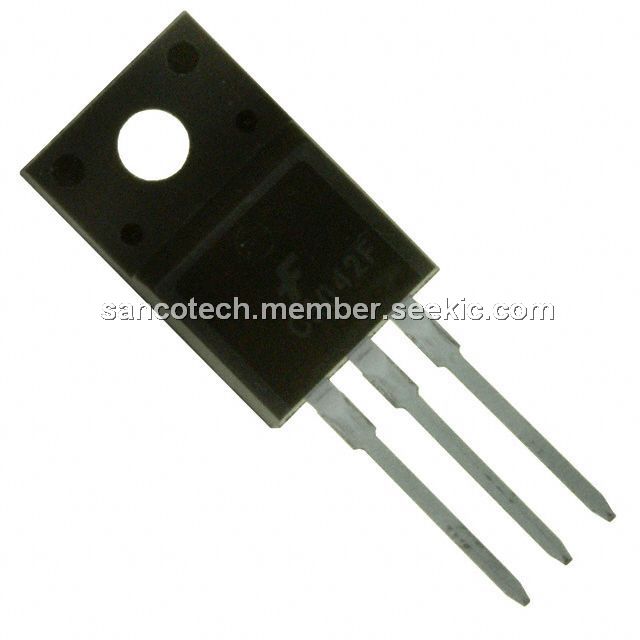

The KSC5042 is an NPN Triple Diffused Planar Silicon Transistor.
Parametrics
KSC5042 absolute maximum ratings: (1)VCBO Collector-Base Voltage: 1500 V; (2)VCEO Collector-Emitter Voltage: 900 V; (3)VEBO Emitter-Base Voltage: 5 V; (4)IC Collector Current (DC): 100 mA; (5)ICP Collector Current (Pulse): 300 mA; (6)PC Collector Dissipation (TC=25°C) : 10 W; (7)TJ Junction Temperature: 150℃; (8)TSTG Storage Temperature: - 55℃ to 150℃.
Features
KSC5042 features: (1)High Collector-Emitter Breakdown Voltage: BVCEO=900V; (2)Small Cob =2.8pF(Typ.); (3)Wide S.O.A; (4)High reliability.

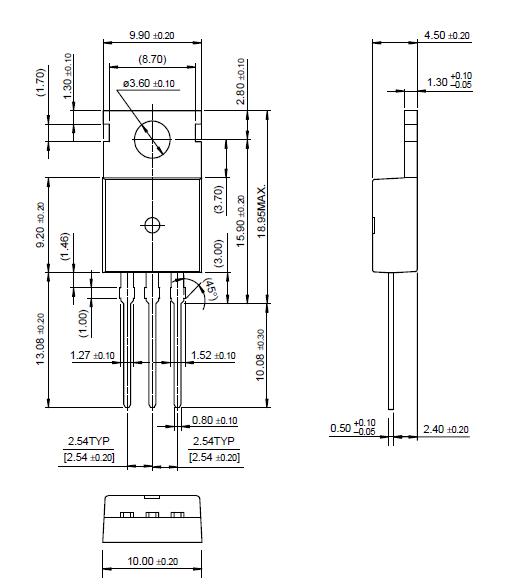

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KSC5042 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KSC5042F |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
KSC5042FTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN Triple Diffused Planar Silicon |
Data Sheet |
Negotiable |
|
||||
|
KSC5042FYDTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN Si Transistor Tripple Diff Planar |
Data Sheet |
Negotiable |
|
||||
|
KSC5042MSTSSTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) |
Data Sheet |
Negotiable |
|
||||
|
KSC5042M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KSC5042MSTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) NPN Triple Diffused Planar Silicon |
Data Sheet |
Negotiable |
|
||||
|
KSC5042TU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) |
Data Sheet |
Negotiable |
|
||||
