Product Summary
The 2N4117A is an N-Channel JFET General Purpose Amplifier. It provides ultra-high input impedance. The 2N4117A is specified with a 1-pA limit and typically operate at 0.2 pA. This makes it perfect choices for use as high-impedance sensitive front-end amplifiers.
Parametrics
2N4117A absolute maximum ratings: (1)Gate-Source or Gate-Drain Voltage: -40V; (2)Gate Current: 50mA; (3)Storage Temperature Range: -65℃ to +200℃; (4)Operating Temperature Range: -55℃ to +175℃; (5)Lead Temperature (Soldering, 10sec): +300℃; (6)Power Dissipation: 300mW; (7)Derate above 25oC: 2.0mW/℃.
Features
2N4117A features: (1)Ultra-Low Leakage: 0.2 pA; (2)Very Low Current/Voltage Operation; (3)Ultrahigh Input Impedance; (4)Low Noise.
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

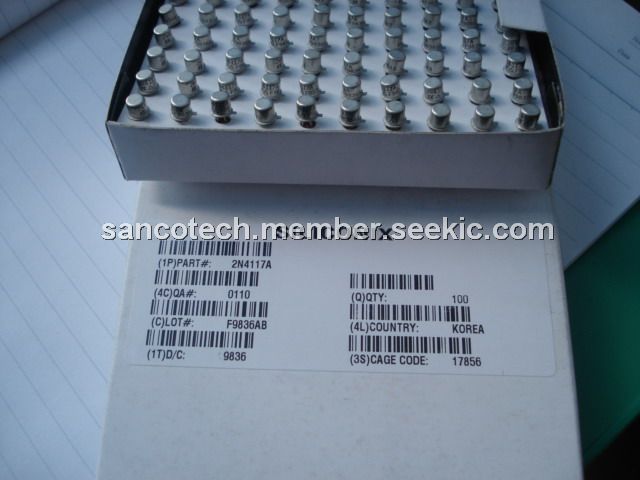

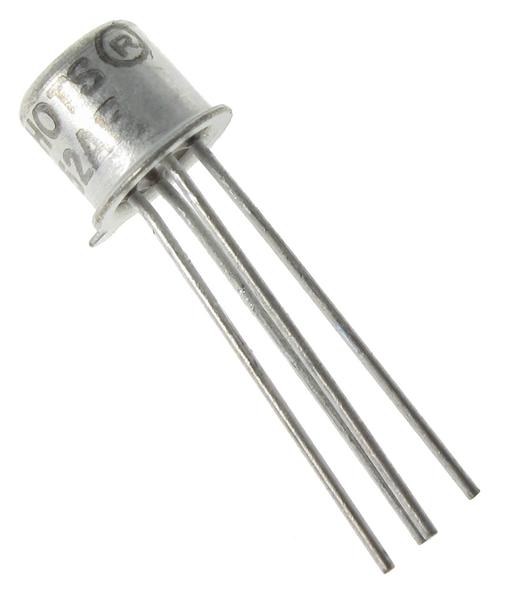

2N4117A |
Vishay/Siliconix |
JFET 40V 0.03mA |
Data Sheet |
|
|
|||||||||||||
2N4117A 2N4119A |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
2N4117A-2N4119A |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
2N4117A-E3 |
Vishay/Siliconix |
JFET 40V 0.03mA |
Data Sheet |
|
|
