Product Summary

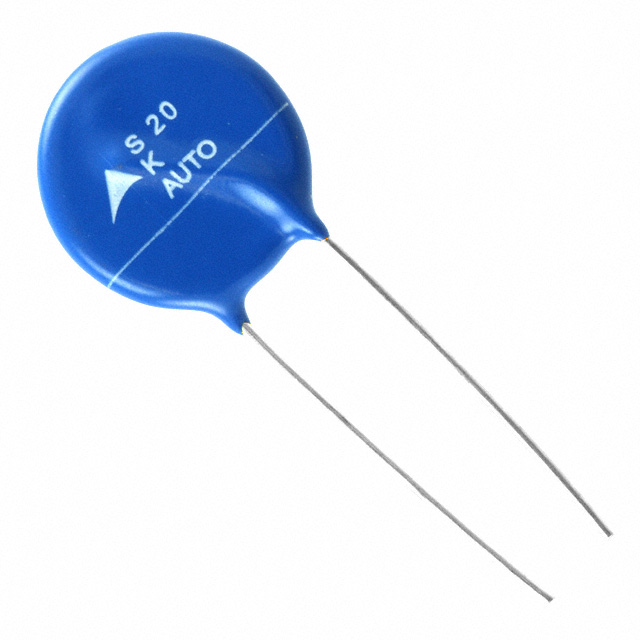

The S20K320 is a leaded varistor.

Parametrics

S20K320 absolute maximum ratings: (1)VRMS: 320V; (2)VDC: 420V; (3)imax 8/20 μs: 8000A; (4)Wmax(2 ms) : 184J; (5)Pmax: 1W.

Features

S20K320 features: (1)Wide operating voltage range 11 to 1100 VRMS; (2)No derating up to 85℃ ambient temperature; (3)PSpice models.

Diagrams

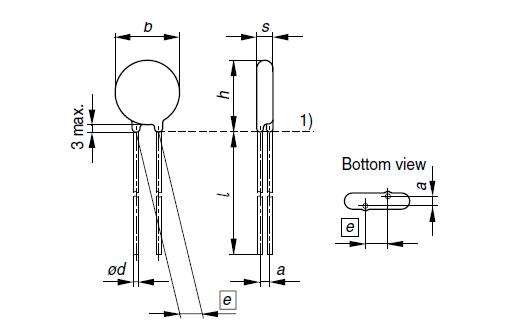

S20K320 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S20K320
S20K320

VARISTOR 320V RMS 20MM RADIAL
Data Sheet
0-1: $0.64
1-10: $0.49
10-100: $0.35
100-500: $0.27
500-1000: $0.23
1000-5000: $0.21
5000-10000: $0.20
S20K320E2
S20K320E2

VARISTOR 320VRMS 20MM RADIAL
Data Sheet
0-1500: $0.27
S20K320E3
S20K320E3

VARISTOR 320VRMS 20MM RADIAL
Data Sheet
0-1500: $0.31
S20K320E3K1
S20K320E3K1

VARISTOR 320V RMS 20MM RADIAL
Data Sheet
0-1: $0.99
1-10: $0.78
10-100: $0.59
100-500: $0.44
500-1000: $0.39
1000-5000: $0.35
5000-10000: $0.34
