Product Summary

The 74HC14D is a hex inverting schmitt trigger. The 74HC14D is a high-speed Si-gate CMOS device and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC14D provides six inverting buffers with Schmitt-trigger action. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Parametrics

74HC14D absolute maximum ratings: (1)VCC supply voltage: -0.5 +7 V; (2)IIK input diode current VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA; (3)IOK output diode current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA; (4)IO output source or sink current: -0.5 V < VO < VCC + 0.5 V - ±25 mA; (5)ICC; IGND VCC or GND current: - 50 mA; (6)Tstg storage temperature: -65 +150℃.

Features

74HC14D features: (1)Complies with JEDEC standard no. 7A; (2)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (3)Specified from -40 to +85℃ and -40 to +125℃.

Diagrams

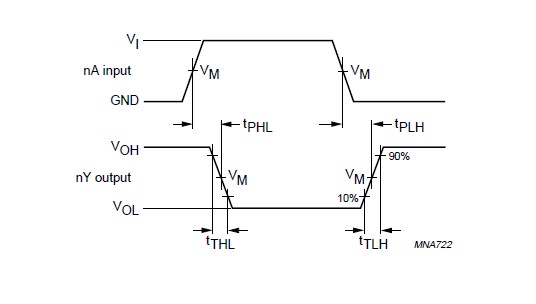

74HC14D AC waveform

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

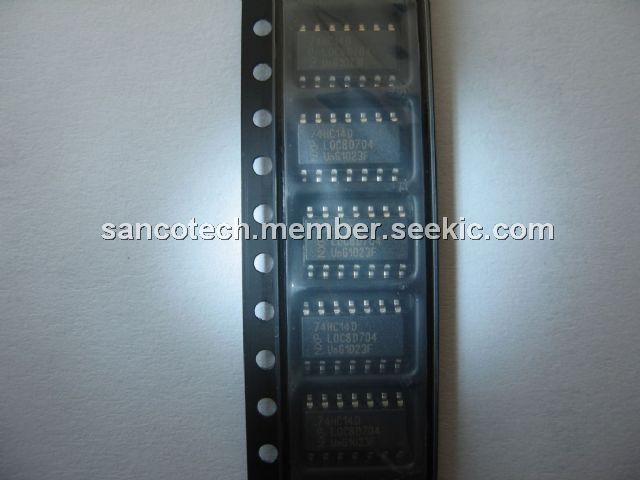

74HC14D
74HC14D

NXP Semiconductors

Inverters HEX INV SCHMITT TRIG

Data Sheet

Negotiable
74HC14D,652
74HC14D,652

NXP Semiconductors

Inverters HEX INV SCHMITT TRIG

Data Sheet

0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.04
74HC14D,653
74HC14D,653

NXP Semiconductors

Inverters HEX INVERTER SCHMITT TRIGGER

Data Sheet

0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.04
74HC14DB,112
74HC14DB,112

NXP Semiconductors

Inverters HEX INV SCHMITT TRIG

Data Sheet

0-1: $0.38
1-25: $0.29
25-100: $0.26
100-250: $0.22
74HC14DB,118
74HC14DB,118

NXP Semiconductors

Inverters HEX INVERTER SCHMITT

Data Sheet

0-1: $0.19
1-25: $0.17
25-100: $0.14
100-250: $0.13
74HC14DB-T
74HC14DB-T

NXP Semiconductors

Inverters HEX INVERTER SCHMITT TRIGGER

Data Sheet

Negotiable
74HC14DR2G
74HC14DR2G

ON Semiconductor

Inverters HEX SCHMITT TRIGGER INVERTER

Data Sheet

0-1: $0.23
1-25: $0.16
25-100: $0.12
100-500: $0.09
74HC14DTR2G
74HC14DTR2G

ON Semiconductor

Inverters HEX SCHMITT TRIGGER INVERTER

Data Sheet

0-1: $0.26
1-25: $0.17
25-100: $0.14
100-500: $0.09
