Product Summary
The HC5549CMZ Subscriber line interface circuit is a 100V diellectrically isolated bipolar integrated circuit for use in short loop ISDN, PABX and Pairgain applications. The HC5549CMZ has been optimized for low power as required for battery backed remote terminals or for applications requiring emergency powering from the line such as European ISDN NT1+ designs. A high and low voltage battery supply may be connected to the HC5549CMZ so that power dissipation can be lowered in the off hook condition in these short loop applications. The high battery supply can be used in the on-hook condition to allow interfacing to fax and answering machines that require 48V to detect end of call status. The HC5549CMZ also has a low power standby state with very low power consumption (35mW) resulting in exceptionally low battery drain while providing continued loop supervision.
Parametrics
HC5549CMZ absolute maximum ratings: (1)Maximum Supply Voltages, VCC: -0.5V to +7V; (2)Maximum Supply Voltages, VCC -VBAT: 80V; (3)Maximum Tip/Ring Negative Voltage Pulse: -115V; (4)Maximum Tip/Ring Positive Voltage Pulse: 8V; (5)Uncommitted Switch Voltage: -80V; (6)ESD (Human Body Model): 500V.
Features
HC5549CMZ features: (1)Dual Battery Operation; (2)Single Additional +5V Supply; (3)Low Standby Power Consumption (48V, 35mW); (4)On Hook Transmission; (5)Tip and Ring Disconnect; (6)Soft or Hard Polarity Reversal; (7)Supports 12kHz or 16kHz Pulse Metering; (8)Ring Relay Driver; (9)On Chip 2-wire AC/DC Loopback; (10)0℃ to 70℃ or -40℃ to 85℃ Ambient Temp Range; (11)Low External Component Count; (12)Pb-Free Available (RoHS Compliant).

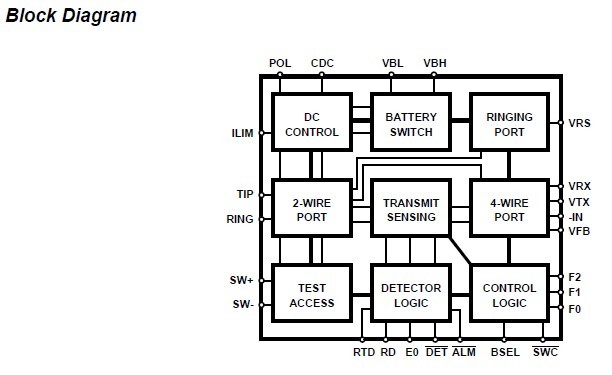

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
HC5549CMZ |
Intersil |
IC SLIC LP W/BATTERY SW 28-PLCC |
Data Sheet |
|
|
|||||||
