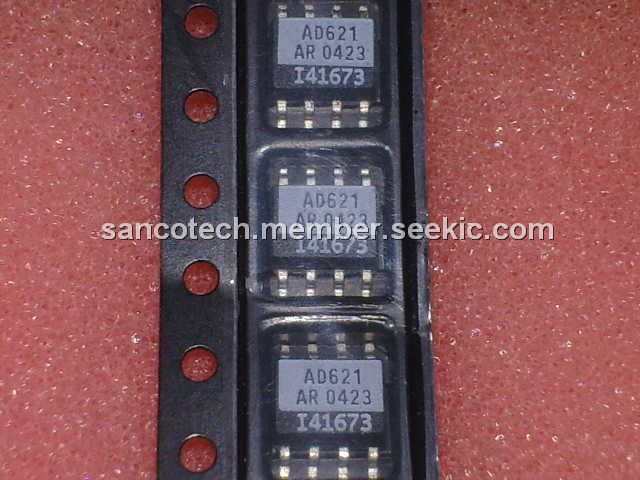

Product Summary
The AD621AR is an easy to use, low cost, low power, high accuracy instrumentation amplifier that is ideally suited for a wide range of applications. Its unique combination of high performance, small size and low power, outperforms discrete in amp implementations. High functionality, low gain errors, and lowgain drift errors are achieved by the use of internal gain setting resistors. Fixed gains of 10 and 100 can easily be set via external pin strapping. The AD621AR is fully specified as a total system, therefore, simplifying the design process. For portable or remote applications, where power dissipation, size, and weight are critical, the AD621AR features a very low supply current of 1.3 mA max and is packaged in a compact 8-lead SOIC, 8-lead plastic DIP or 8-lead cerdip. The AD621AR also excels in applications requiring high total accuracy, such as precision data acquisition systems used in weigh scales and transducer interface circuits.
Parametrics
AD621AR absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 650 mW; (3)Differential Input Voltage: ±25 V; (4)Storage Temperature Range: –65℃ to +125℃; (5)Operating Temperature Range: –40℃ to +85℃; (6)Lead Temperature Range(Soldering 10 seconds): 300℃.
Features
AD621AR features: (1)EASY TO USE; (2)Pin-Strappable Gains of 10 and 100; (3)All Errors Specified for Total System Performance; (4)Higher Performance than Discrete In Amp Designs; (5)Available in 8-Lead DIP and SOIC; (6)Low Power, 1.3 mA Max Supply Current; (7)Wide Power Supply Range (±2.3 V to ±18 V).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD621AR |
IC AMP INST LDRIFT LP 18MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD621AR-REEL7 |
IC AMP INST LDRIFT LP 18MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD621ARZ |
IC AMP INST LDRIFT LP 18MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD621ARZ-R7 |
IC AMP INST LDRIFT LP 18MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD621ARZ-RL |
IC AMP INST LDRIFT LP 18MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
AD621AR-REEL |
Analog Devices Inc |
IC INSTR AMP LP LOW DRIFT 8-SOIC |
Data Sheet |
Negotiable |
|
