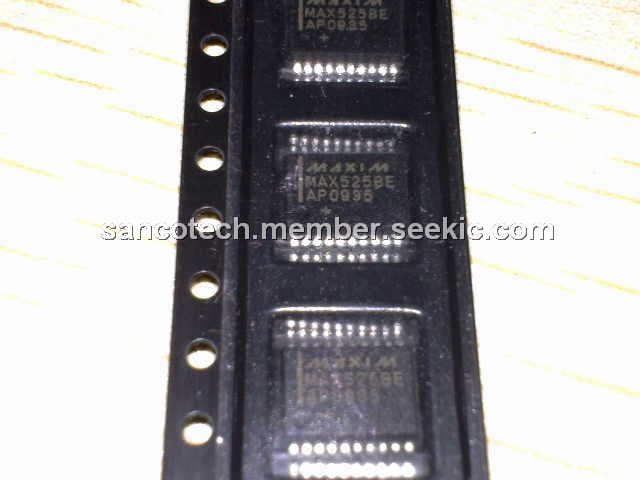

MAX525BE

Product Summary

The MAX525BE combines four low-power, voltage-output, 12-bit digital-to-analog converters (DACs) and four precision output amplifiers in a space-saving, 20-pin package. In addition to the four voltage outputs, each amplifier’s negative input is also available to the user. This facilitates specific gain configurations, remote sensing, and high output drive capacity, making the MAX525BE ideal for industrial-process-control applications. Other features include software shutdown, hardware shutdown lockout, an active-low reset which clears all registers and DACs to zero, a user-programmable logic output, and a serial-data output. Each DAC has a double-buffered input organized as an input register followed by a DAC register. A 16-bit serial word loads data into each input/DAC register. The serial interface is compatible with SPI™/QSPI™ and Microwire™. It allows the input and DAC registers to be updated independently or simultaneously with a single software command. The DAC registers can be simultaneously updated via the 3-wire serial interface. All logic inputs are TTL/CMOS-logic compatible.

Parametrics

Absolute maximum ratings:(1)VDD to AGND: -0.3V to +6V; (2)VDD to DGND: -0.3V to +6V; (3)AGND to DGND: ±0.3V; (4)REFAB, REFCD to AGND: -0.3V to (VDD + 0.3V); (5)OUT_, FB_ to AGND: -0.3V to (VDD + 0.3V); (6)Digital Inputs to DGND: -0.3V to +6V; (7)DOUT, UPO to DGND: -0.3V to (VDD + 0.3V); (8)Continuous Current into Any Pin: ±20mA; (9)Plastic DIP (derate 8.00mW/°C above +70°C): 640mW; (10)SSOP (derate 8.00mW/°C above +70°C): 640mW; (11)CERDIP (derate 11.11mW/°C above +70°C): 889mW; (12)Operating Temperature Ranges MAX525BE: -40°C to +85°C; (13)Storage Temperature Range: -65°C to +150°C; (14)Lead Temperature (soldering, 10sec): +300°C.

Features

Features:(1)Four 12-Bit DACs with Configurable Output Amplifiers; (2)+5V Single-Supply Operation; (3)Low Supply Current: 0.85mA Normal Operation 10μA Shutdown Mode; (4)Available in 20-Pin SSOP; (5)Power-On Reset Clears all Registers and DACs to Zero; (6)Capable of Recalling Last State Prior to Shutdown; (7)SPI/QSPI and Microwire Compatible; (8)Simultaneous or Independent Control of DACs via 3-Wire Serial Interface; (9)User-Programmable Digital Output.

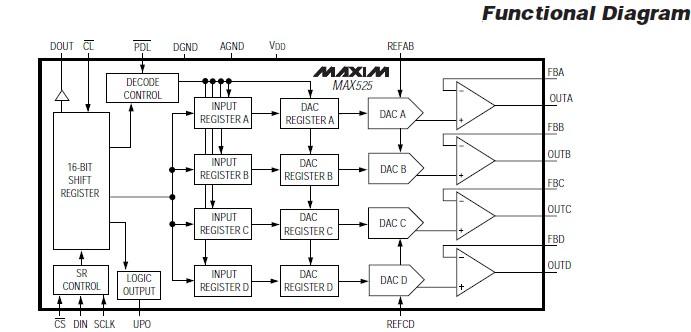

Diagrams
