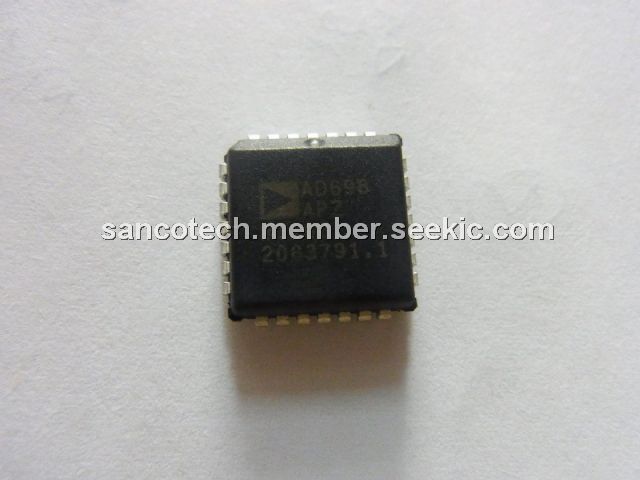

Product Summary

The AD698APZ is a complete, monolithic Linear Variable Differential Transformer (LVDT) signal conditioning subsystem. It is used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar dc voltage with a high degree of accuracy and repeatability. The AD698APZ contains a low distortion sine wave oscillator to drive the LVDT primary. The device uses a unique ratiometric architecture to eliminate several of the disadvantages associated with traditional approaches to LVDT interfacing.

Parametrics

AD698APZ absolute maximum ratings: (1)Total Supply Voltage (+VS to –VS): 36 V; (2)Storage Temperature Range: P Package: –65℃ to +150℃; Q Package: –65℃ to +150℃; (3)Operating Temperature Range:–55℃ to +125℃; (4)Lead Temperature Range (Soldering 60 sec): +300℃; (5)Power Dissipation Derates above +65℃: P Package: 12 mW/℃; Q Package:12 mW/℃.

Features

AD698APZ features: (1)Single Chip Solution, Contains Internal Oscillator and Voltage Reference; (2)No Adjustments Required; (3)Interfaces to Half-Bridge, 4-Wire LVDT; (4)DC Output Proportional to Position; (5)20 Hz to 20 kHz Frequency Range; (6)Unipolar or Bipolar Output; (7)Will Also Decode AC Bridge Signals; (8)Outstanding Performance: Linearity: 0.05%; Output Voltage: 611 V; Gain Drift: 20 ppm/8C (typ); Offset Drift: 5 ppm/8C (typ).

Diagrams

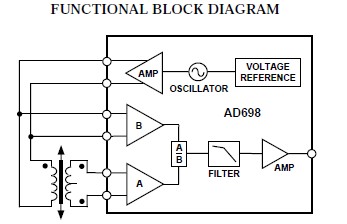

AD698APZ block diagram
