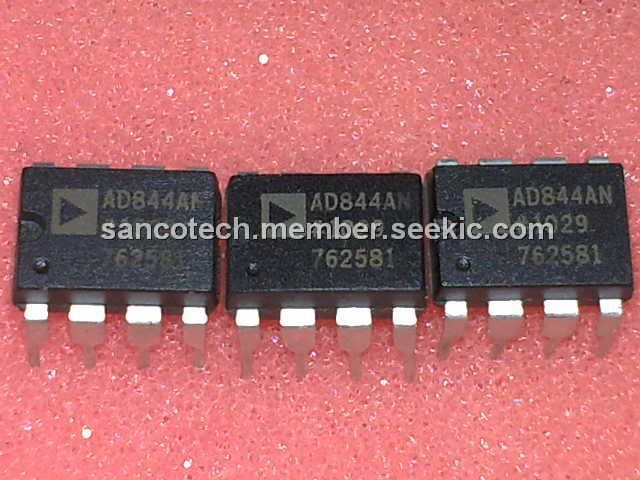

AD844ANZ

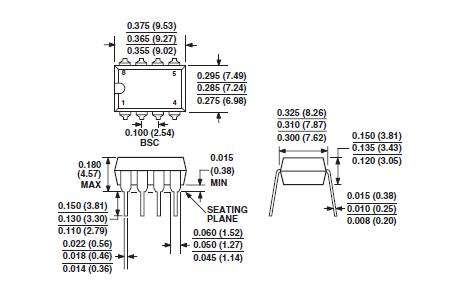

AD844ANZ, 60 MHz, 2000 V/μs Monolithic Op Amp, DIP- 8, ±18 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: AD844ANZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-01

From Other Seller

Part Number:AD844ANZ
US $0.10 - 1.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD844ANZ4 is a high speed monolithic operational amplifier fabricated using Analog Devices’ junction isolated complementary bipolar (CB) process. The AD844ANZ combines high bandwidth and very fast large signal response with excellent dc performance. Although optimized for use in current-to voltage applications and as an inverting mode amplifier, it is also suitable for use in many noninverting applications. The AD844ANZcan be used in place of traditional op amps, but its current feedback architecture results in much better ac performance, high linearity, and an exceptionally clean pulse response.

Parametrics

AD844ANZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Power Dissipation: 1.1 W; (3)Differential Input Voltage: 6 V; (4)Inverting Input Current Continuous: 5 mA; (5)Inverting Input Current Transient: 10 mA; (6)Storage Temperature Range: –65℃ to +125℃; (7)Lead Temperature Range (Soldering 60 sec): 300℃; (8)ESD Rating: 1000 V.

Features

AD844ANZ features: (1)Available in Tape and Reel in Accordance with EIA-481A Standard; (2)Wide Bandwidth: 60 MHz at Gain of –1; (3)Wide Bandwidth: 33 MHz at Gain of –10; (4)Fast Settling: 100 ns to 0.1% (10 V Step); (5)Differential Gain Error: 0.03% at 4.4 MHz; (6)Differential Phase Error: 0.158 at 4.4 MHz.
