Product Summary
The AT45DB161D-TU is a 16-megabit 2.5-volt or 2.7-volt data flash. The AT45DB161D-TU is a 2.5V or 2.7V, serial-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB161D-TU supports Atmel RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequencies up to 66MHz. Its 17,301,504-bits of memory are organized as 4,096 pages of 512-bytes or 528-bytes each.
Parametrics
AT45DB161D-TU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages (except VCC but including NC pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Temperature under Bias: -55℃ to +125℃.
Features
AT45DB161D-TU features: (1)Single 2.5V to 3.6V or 2.7V to 3.6V Supply; (2)Atmel RapidS Serial Interface: 66MHz Maximum Clock Frequency; (3)SPI Compatible Modes 0 and 3; (4)User Configurable Page Size; (5)Two SRAM Data Buffers (512-/528-Bytes); (6)Allows Receiving of Data while Reprogramming the Flash Array; (7)Continuous Read Capability through Entire Array; (8)Ideal for Code Shadowing Applications; (9)Low-power Dissipation.

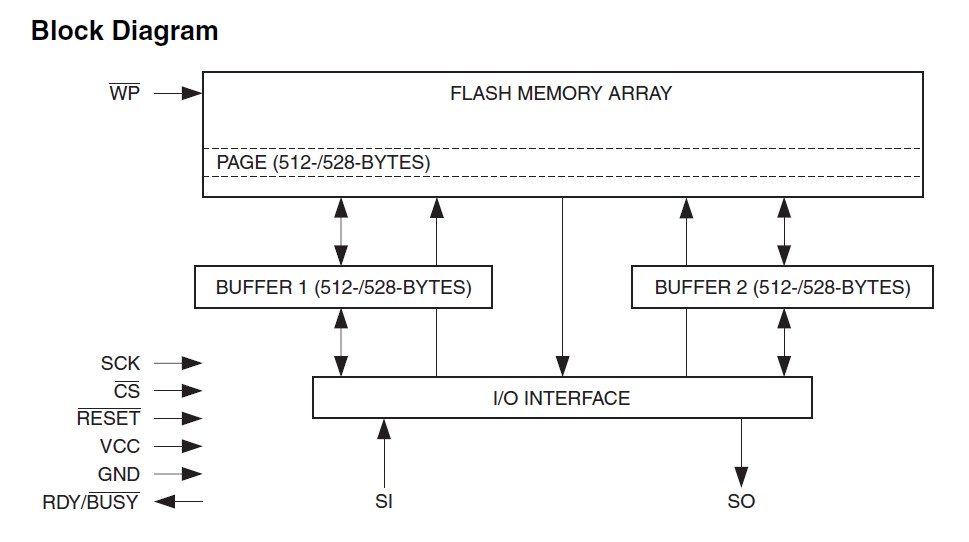

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB161D-TU |
Atmel |
Flash 16M 28 I/O Pins SPI 528B 2.5V 2.7V |
Data Sheet |
Negotiable |
|
||||||||||||
|
AT45DB161D-TU-2.5 |
Atmel |
Flash 16MB SERIAL - IND TEMP |
Data Sheet |
|
|
||||||||||||
