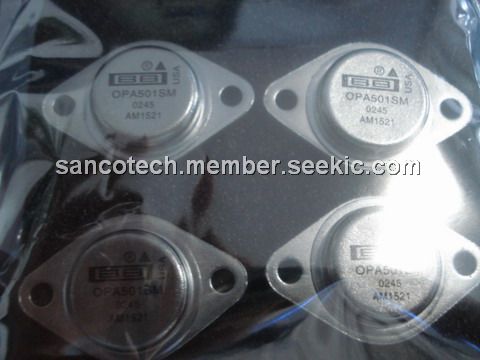

Product Summary

The OPA501SM is a high output current operational amplifier. It can be used in virtually all common op amp circuits, yet is capable of output currents up to ±10A. Power supply voltages up to ±40V allow very high output power for driving motors or other electromechanical loads.

Parametrics

OPA501SM absolute maximum ratings: (1)Power Supply Voltage: ±40V; (2)Power Dissipation at +25℃: 79W; (3)Differential Input Voltage: ±VS –3V; (4)Common-Mode Input Voltage: ±VS; (5)Operating Temperature Range: –55℃ to +125℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (soldering, 10s): +300℃; (8)Junction Temperature: +200℃.

Features

OPA501SM features: (1) high output current: ±10A peak; (2) wide power supply range: ±10 V to ±40 V; (3) low quiescent current: 2.6mA; (4) isolated case To-3 package.

Diagrams

OPA501SM block diagram
