Product Summary

The ELL6UH470M is a Choke Coil. It is applicated for video, audio, mobile communications, electric battery driven equipment. The ELL6UH470M is used as a decoupling choke coil in DC- DC converters.

Parametrics

ELL6UH470M absolute maximum ratings: (1)Inductance at 100 kHz Tolerance ± 20%: 47.0 μH; (2)RDC at 20℃ tolerance ± 20%: 160 mΩ; (3)Rated current max.: 900 mA; (4)Marking: 470.

Features

ELL6UH470M features: (1)Thin (height 2.5 mm, 3.0 mm); (2)Higher reliability in mounting by separating the user terminal and internal connection; (3)Large current capability.

Diagrams

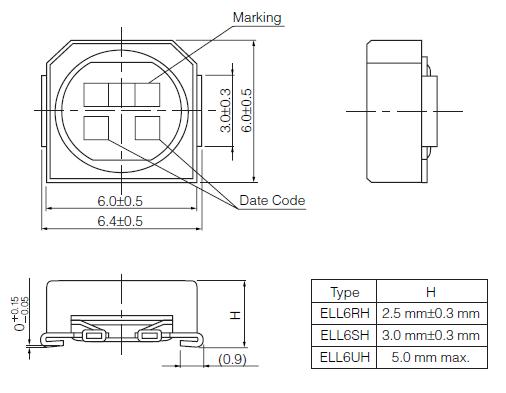

ELL6UH470M package dimensions
