Product Summary

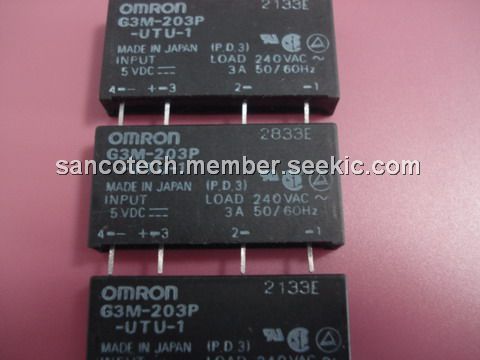

The G3M-203P-UTU-1 is a Solid State Relay.
Parametrics
G3M-203P-UTU-1 absolute maximum ratings: (1)Operate time: 1 ms max.; (2)Output ON voltage drop: 1.6 V (RMS) max.; (3)Leakage current: 1.5 mA (at 200 VAC); (4)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (5)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 min; (6)Operating Ambient temperature: –30℃ to 80℃; (7)Storage Ambient temperature: –30℃ to 100℃.
Features
G3M-203P-UTU-1 features: (1)3 and 5A single in-line package SSR; (2)Thin design for high-density PCB applications; (3)DC input-AC output for up to a 5-A load; (4)Certified by UL, CSA, and VDE.

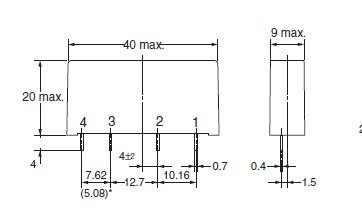

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3M-203P-UTU-1 DC12 |
Omron Industrial |
Solid State Relays ULCSATUV reinfcase 3A SSRPCB |
Data Sheet |
|
|
||||||||||||
|
G3M-203P-UTU-1 DC24 |
Omron Industrial |
Solid State Relays ULCSATUV reinfcase 3A SSRPCB |
Data Sheet |
|
|
||||||||||||
|
G3M-203P-UTU-1 DC5 |
Omron Industrial |
Solid State Relays ULCSATUV reinfcase 3A SSRPCB |
Data Sheet |
|
|
||||||||||||
 |
G3M-203P-UTU-1-4 DC5 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY TUV Markings |
Data Sheet |
|
|
||||||||||||
|
G3M-203P-UTU-1-4 DC12 |
Omron Industrial |
Solid State Relays Alt Input Term Pitch Reinforced Ins TUV |
Data Sheet |
Negotiable |
|
||||||||||||
