Product Summary

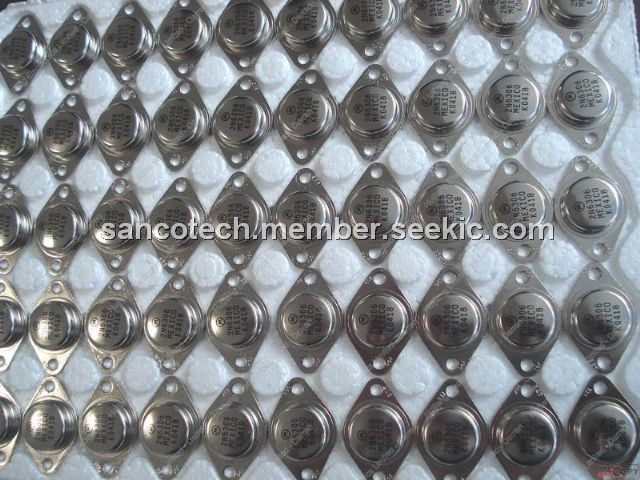

The 2N6306 is an NPN Power silicon transistor.
Parametrics
2N6306 absolute maximum ratings: (1)VCEO: 250 V; (2)IC(CONT): 8 A; (3)hFE @ 5/3 (VCE / IC): 15 to 75; (4)ft: 5MHz; (5)PD: 125 W.
Features
2N6306 features: (1)Bipolar NPN Device; (2)in a Hermetically sealed TO3 Metal Package.

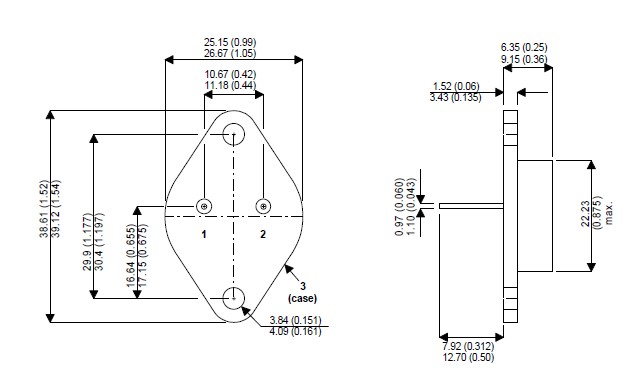

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N6306 |
Other |
|
Data Sheet |
Negotiable |
|
||||
