Product Summary
The JAN1N6464 is a transient suppressor diode.
Parametrics
JAN1N6464 absolute maximum ratings: (1)Operating temperature: -65℃ to +175℃; (2)Storage temperature: -65℃ to +200℃; (3)Break down voltage: 16.4 V; (4)Test current: 5mA to 10mA; (5)Working peak voltage: 15 V.
Features
JAN1N6464 features: (1)high surge capacity provides transient protecion for MOST critical circuits; (2)triple layer passivation; (3)subminiature; (4)metallurgically bonded; (5)voidless hermetically sealed glass package; (6)dynamic impedance and reverse leakage lowest available; (7)JAN/ TX/ TXV types available per MIL- S- 19500/ 551, 552.

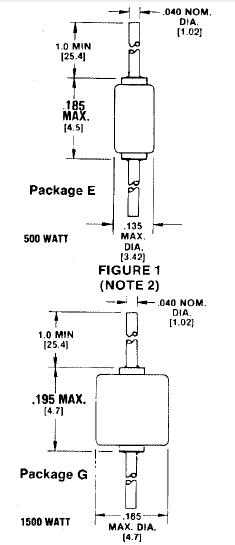

Diagrams
 |
