Product Summary

The Blue source color device KP-1608QBC-G is made with InGaN Light Emitting Diode. Static electricity and surge damage the LEDS. The KP-1608QBC-G is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.

Parametrics

KP-1608QBC-G absolute maximum ratings: (1)Power dissipation: 120mW; (2)DC Forward Current: 30mA; (3)Peak Forward Current: 150mA; (4)Reverse Voltage: 5V; (5)Operating Temperature: -40℃ To +85℃; (6)Storage Temperature: -40℃ To +85℃.

Features

KP-1608QBC-G features: (1)1.6mmX0.8mm SMT LED, 1.1mm thickness; (2)Low power consumption; (3)Wide viewing angle; (4)Ideal for backlight and indicator; (5)Various colors and lens types available; (6)Package: 2000pcs / reel; (7)Moisture sensitivity level : level 3; (8)RoHS compliant.

Diagrams

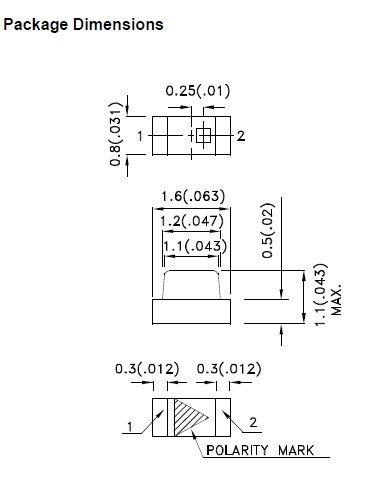

KP-1608QBC-G Package Dimensions
