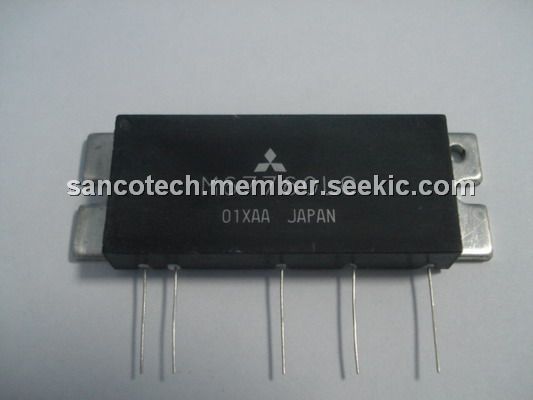

The M67760LC is a RF power module.
Parametrics
M67760LC absolute maximum ratings: (1)VBB Base bias: 9.5 V; (2)VCC1 Supply voltage: 14 V; (3)VCC2 Supply voltage: 16.5 V; (4)ICC Total current: 8.5 A; (5)Pin (max) Input power: 0.8 W; (6)PO (max) Output power: 25 W; (7)TC (OP) Operation case temperature: -30℃ to +110℃; (8)Tstg Strage temperature: -40℃ to +110℃.
Features
M67760LC features: (1)frequency range: 806 to 870MHz; (2)output power: 20W; (3)total efficiency: 25%; (4)2nd. harmonic: -30dBc; (5)input VSWR: 3; (6)load VSWR tolerance no degradation or destroy; (7)stability no oscillation more than- 60dBc.

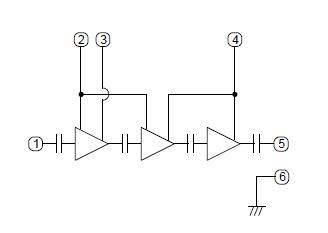

Diagrams
