Product Summary

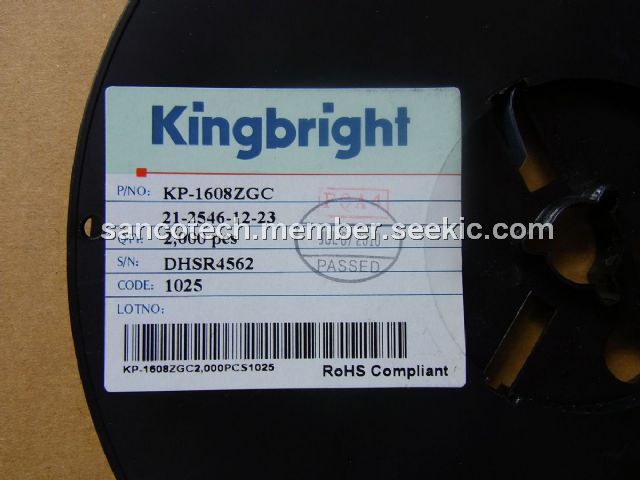

The KP-1608ZGC is a 1.6×0.8mm SMD chip led lamp. It is made with AlInGaN on Sapphire Light Emitting Diode. Static electricity and surge damage the LEDS. The KP-1608ZGC is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. The KP-1608ZGC equipment and machinery must be electrically grounded.

Parametrics

KP-1608ZGC absolute maximum ratings: (1)Power dissipation: 102.5 mW; (2)DC Forward Current: 25 mA; (3)Peak Forward Current: 150 mA; (4)Reverse Voltage: 5 V; (5)Operating Temperature: -40℃ To +85℃; (6)Storage Temperature: -40℃ To +85℃.

Features

KP-1608ZGC features: (1)1.6mm×0.8mm smt led, 1.1mm thickness; (2)low power consumption; (3)wide viewing angle; (4)ideal for backlight and indicator; (5)various colors and lens types available; (6)package: 2000pcs / reel; (7)moisture sensitivity level: level 3; (8)rohs compliant.

Diagrams

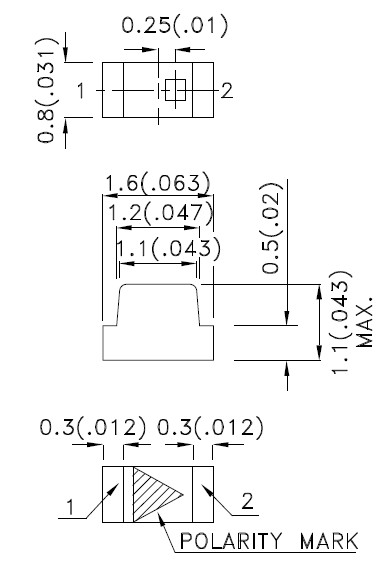

KP-1608ZGC dimensions

KP-1000
KP-1000

Panduit

Terminals Empty Plastic Terminal Kit Box

Data Sheet

Negotiable
KP-1075Y
KP-1075Y

Panduit

Terminals 155 PC. KIT

Data Sheet

0-1: $44.94
1-5: $40.45

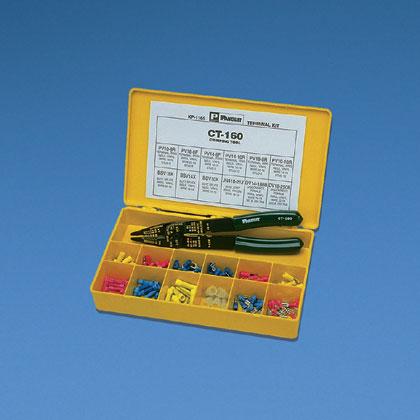

KP-1165
