Product Summary
The High Efficiency Red source color device L-2060ID is made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode.
Parametrics
L-2060ID absolute maximum ratings: (1)Power dissipation: 105mW; (2)DC Forward Current: 30mA; (3)Peak Forward Current: 160mA; (4)Reverse Voltage: 5V; (5)Operating/Storage Temperature: -40℃ To +85℃; (6)Lead Solder Temperature: 260℃ For 3 Seconds; (7)Lead Solder Temperature: 260℃ For 5 Seconds.
Features
L-2060ID features: (1)1.8mm diameter small size LED lamp; (2)ultra brightness is available; (3)reliable and rugged; (4)versatile mounting on P.C. board or panel; (5)available in diffused lens; (6)RoHS compliant.

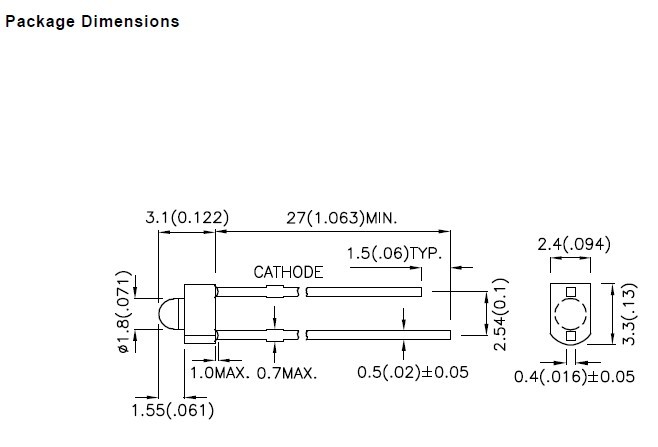

Diagrams
 |
