NCP1216P65G

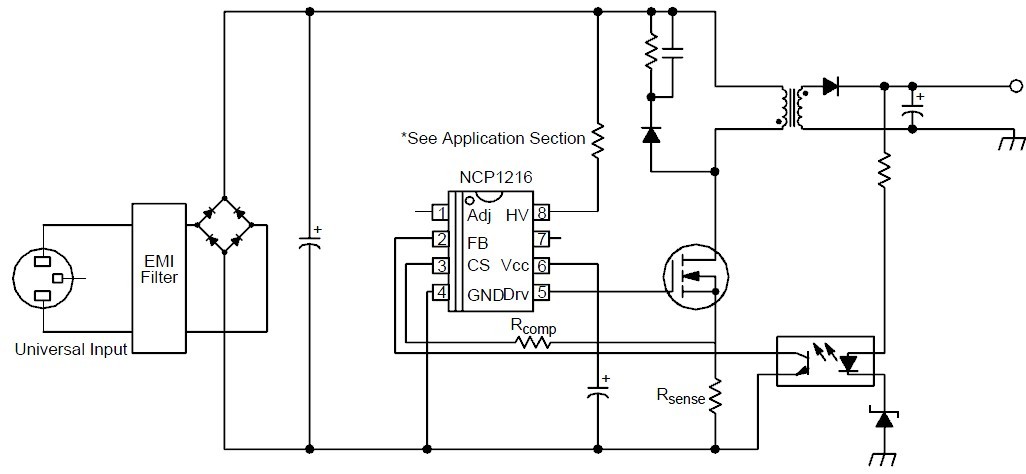

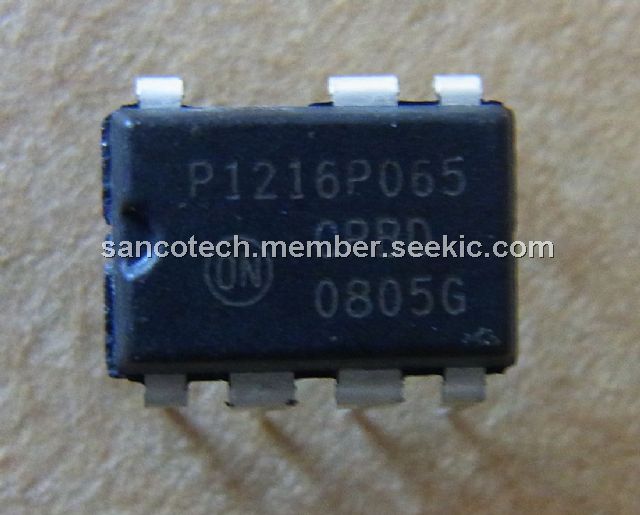

NCP1216P65G, Current Mode PWM Controller, DIP- 7/ SOP8, 16 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

PartNumber:: NCP1216P65G

Brand:: ON SEMICONDUCTOR - ONS | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-24

From Other Seller

Part Number:NCP1216P65G
US $0.10 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The NCP1216P65G is a current mode PWM controller. It represents an enhanced version of NCP1200 based controllers. Due to its high drive capability, the NCP1216P65G drives large gate- charge MOSFETs, which together with internal ramp compensation and built- in frequency jittering, ease the design of modern AC/DC adapters.

Parametrics

NCP1216P65G absolute maximum ratings: (1)Power Supply Voltage, VCC Pin VCC: 16 V; (2)Maximum Voltage on Low Power Pins (except Pin 8 and Pin 6): -0.3 to 10 V; (3)Maximum Voltage on Pin 8 (HV), Pin 6 (VCC) Decoupled to Ground with 10 μF: 500 V; (4)Maximum Voltage on Pin 8 (HV), Pin 6 (VCC) Grounded: 450 V; (5)Minimum Operating Voltage on Pin 8 (HV): 28 V; (6)Maximum Current into all Pins except VCC (Pin 6) and HV (Pin 8) when 10 V ESD Diodes are Activated: 5.0 mA; (7)Thermal Resistance Junction-to-Air, PDIP-7 Version: 100℃/W; (8)Thermal Resistance Junction-to-Air, SOIC-8 Version: 178℃/W; (9)Maximum Junction Temperature TJMAX: 150℃; (10)Temperature Shutdown TSD: 155℃; (11)Hysteresis in Shutdown: 30℃; (12)Storage Temperature Range: -60℃ to +150℃; (13)ESD Capability, HBM Model (All Pins except VCC and HV): 2.0 kV; (14)ESD Capability, Machine Model: 200 V.

Features

NCP1216P65G features: (1)No Auxiliary Winding Operation; (2)Current-Mode Control with Adjustable Skip-Cycle Capability; (3)Internal Ramp Compensation; (4)Built-In Frequency Jittering for Better EMI Signature; (5)Auto-Recovery Internal Output Short-Circuit Protection; (6)Extremely Low No-Load Standby Power; (7)500 mA Peak Current Capability; (8)Fixed Frequency Versions at 65 kHz, 100 kHz, 133 kHz; (9)Internal Temperature Shutdown; (10)Direct Optocoupler Connection; (11)SPICE Models Available for TRANsient and AC Analysis; (12)Pb-Free Packages are Available.
