Product Summary

The OP200GS is a Low Power Operational Amplifier. It is the first monolithic dual operational amplifier to offer OP77 type precision performance. Available in the industry standard 8-lead pinout, the OP200GS combines precision performance with the space and cost savings offered by a dual amplifier. The OP200GS features an extremely low input offset voltage of less than 75 μV with a drift below 0.5 μV/℃, guaranteed over the full military temperature range. Open-loop gain of the OP200GS exceeds 5,000,000 into a 10 kΩ load; input bias current is under 2 nA; CMRR is over 120 dB; and PSRR is below 1.8 μV/V.

Parametrics

OP200GS Absolute maximum ratings: (1)Supply Voltage: ±20 V; (2)Differential Input Voltage: ±30 V; (3)Storage Temperature Range: -65℃ to +150℃; (4)Lead Temperature (Soldering, 60 sec) 300℃; (5)Junction Temperature Range (TJ): -65℃ to +150℃; (6)Operating Temperature Range OP200A: 55℃ to +125℃.

Features

OP200GS features: (1)Low input offset voltage: 75 μV maximum Low offset voltage drift, over -55℃ < TA < +125℃ 0.5 μV/℃ maximum; (2)Low supply current (per amplifier): 725 μA maximum High open-loop gain: 5000 V/mV minimum Low input bias current: 2 nA maximum; (3)Low noise voltage density: 11 nV/√Hz at 1 kHz; (4)Stable with large capacitive loads: 10 nF typical.

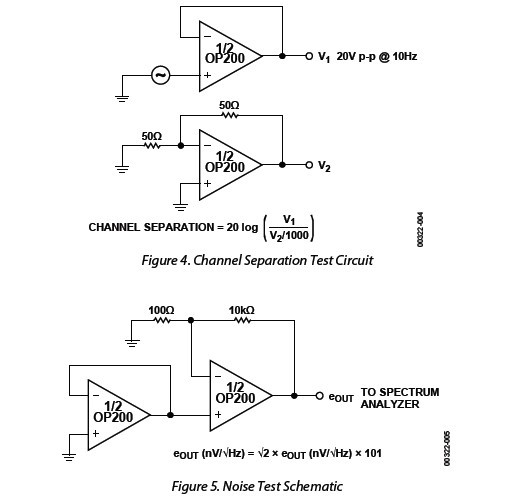

Diagrams

OP200GS pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

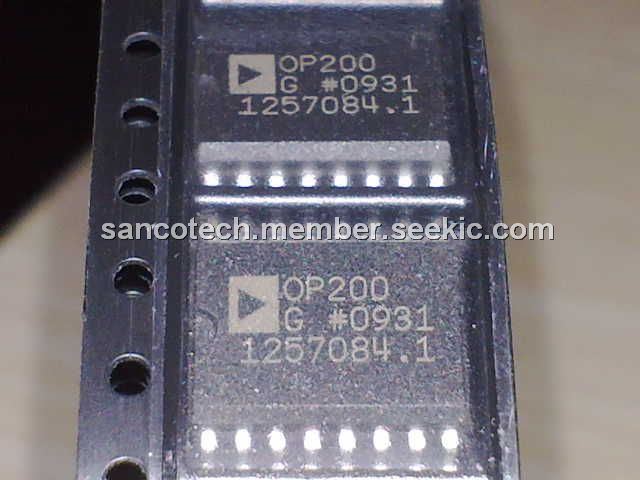

OP200GS
OP200GS

IC OPAMP GP 500KHZ DUAL 16SOIC
Data Sheet
0-47: $3.52
OP200GS-REEL
OP200GS-REEL
Analog Devices Inc
IC OPAMP DUAL LOW OFFSET 16-SOIC
Data Sheet
Negotiable
OP200GSZ-REEL
OP200GSZ-REEL

IC OPAMP GP 500KHZ DUAL 16SOIC
Data Sheet
0-1: $3.94
1-10: $3.55
10-25: $3.22
25-100: $2.92
100-250: $2.67
250-500: $2.45
OP200GSZ
OP200GSZ

IC OPAMP GP 500KHZ DUAL 16SOIC
Data Sheet
0-1: $3.82
1-10: $3.44
10-100: $2.83
100-250: $2.60
250-500: $2.37
500-1000: $2.06
1000-2500: $2.04
