Product Summary
The SFH757V is a 100MBd Transmitter with Direct Fiber Connector. It is applicated for Household electronics, Power electronics, Optical networks, and Light barriers.
Parametrics
SFH757V absolute maximum ratings: (1)Operating Temperature Range TOP: –40℃ +80℃; (2)Storage Temperature Range TSTG: –40℃ +100℃; (3)Junction Temperature TJ: 100℃; (4)Soldering Temperature (2 mm from case bottom, t ≤ 5 s) TS: 260℃; (5)Reverse Voltage VR: 3 V; (6)Forward Current IF: 50 mA; (7)Surge Current (t ≤ 10 μs, D = 0) IFSM: 1 A; (8)Power Dissipation Ptot: 120 mW; (9)Thermal Resistance, Junction/Air RthJA: 450 K/W.
Features
SFH757V features: (1)High speed transmitter for about 50 Mbit/s up to 100 Mbit/s (with peaking circuit); (2)2.2 mm aperture holds standard 1000 micron plastic fiber; (3)No fiber stripping required; (4)Molded microlens for efficient coupling.

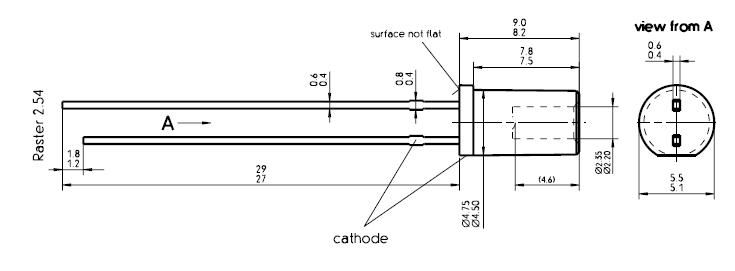

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH757V |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SFH7221 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH752 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH752V |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH757V |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH757 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH756V |
Other |
|
Data Sheet |
Negotiable |
|
||||
