Product Summary

The APTB1615ESGC-F01 is a 1.6x1.5mm BI-COLOR SMD chip LED lamp. The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. The Super Bright Green source color devices are made with Gallium Phosphide Green Light Emitting Diode.

Parametrics

APTB1615ESGC-F01 absolute maximum ratings: (1)Power dissipation: 75 to 62.5 mW; (2)DC Forward Current: 30 to 25 mA; (3)Peak Forward Current: 160 to 140 mA; (4)Reverse Voltage: 5 V; (5)Operating Temperature: -40℃ To +85℃; (6)Storage Temperature; -40℃ To +85℃.

Features

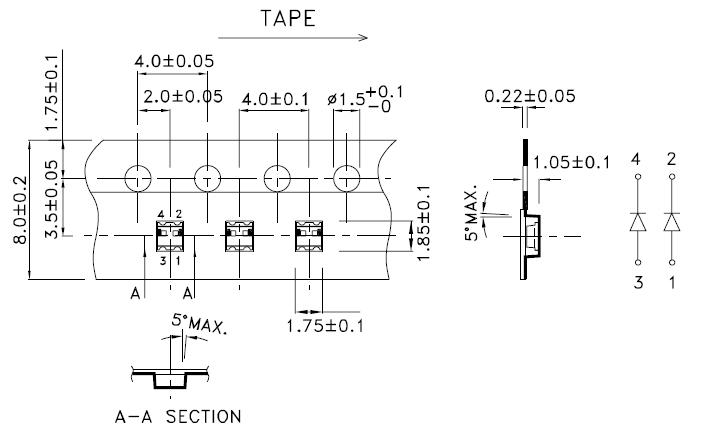

APTB1615ESGC-F01 features: (1)1.6mmx1.5mm SMT LED, 0.7mm thickness; (2)low power consumption; (3)wide viewing angle; (4)ideal for backlight and indicator; (5)various colors and lens types available; (6)packagE : 2000PCS / reel; (7)moisture sensitivity level : leveL 3; (8)RoHS compliant.

Diagrams

APTB1615ESGC-F01 block dragram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APTB1615ESGC-F01
APTB1615ESGC-F01

Kingbright

Standard LED - SMD Red/Grn 625/568nm Water Clear 12/12mcd

Data Sheet

0-1: $0.13
1-10: $0.10
10-100: $0.08
100-200: $0.08
