TC110303ECTTR

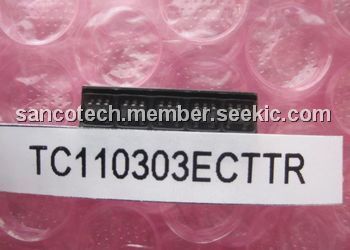

TC110303ECTTR, step-up (Boost) switching controller, SOT-23-5, 12V, 150mA, Microchip Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: TC110303ECTTR

Brand:: Microchip Technology - Microchip | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:TC110303ECTTR
US $0.10 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

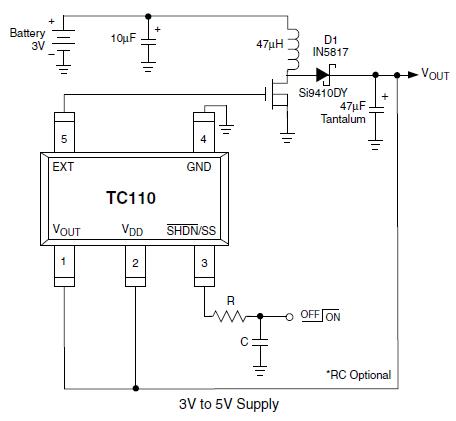

The TC110303ECTTR is a step-up (Boost) switching controller that furnishes output currents of up to 300mA while delivering a typical efficiency of 84%. The TC110303ECTTR normally operates in pulse width modulation mode (PWM), but automatically switches to pulse frequency modulation (PFM) at low output loads for greater efficiency. Supply current draw for the 100kHz version is typically only 50μA, and is reduced to less than 0.5μA when the SHDN input is brought low. Regulator operation is suspended during shutdown. The TC110303ECTTR accepts input voltages from 2.0V to 10.0V, with a guaranteed start-up voltage of 0.9V.The applications of the TC110303ECTTR include palmtops, battery-operated systems, positive LCD bias generators, portable communicators.

Parametrics

TC110303ECTTR absolute maximum ratings: (1)Voltage on VDD, VOUT, SHDN Pins: -0.3V to +12V; (2)EXT output current: ±100mA pk; (3)Voltage on EXT Pin: -0.3V to VDD +0.3V; (4)Power dissipation: 150mW; (5)Operating temperature range: -40℃ to +85℃; (6)Storage temperature range: -40℃ to +125℃.

Features

TC110303ECTTR features: (1)Assured Start-up at 0.9V; (2)50μA (Typ) Supply Current (fOSC = 100kHz); (3)300mA Output Current @ VIN ≥ 2.7V; (4)0.5μA Shutdown Mode; (5)100kHz and 300kHz Switching Frequency Options; (6)Programmable Soft-Start; (7)84% Typical Efficiency; (8)Small Package: 5-Pin SOT-23A.
