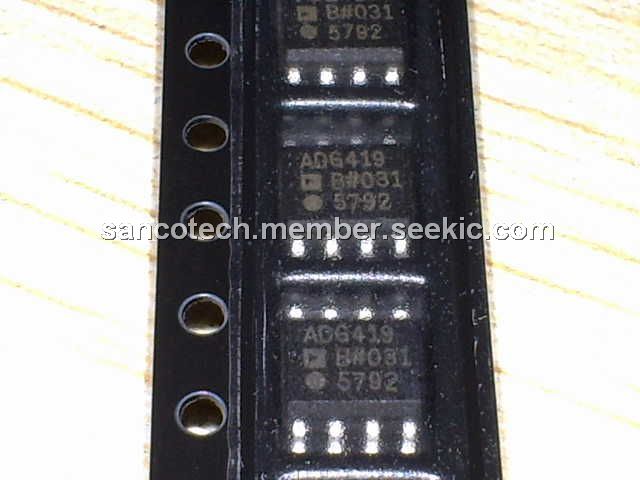

ADG419BR

ADG419BR, LC2MOS Precision Mini-DIP Switch, SOP-8, 44V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: ADG419BR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-01

From Other Seller

Part Number:ADG419BR
US $1.00 - 5.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADG419BR is a monolithic CMOS SPDT switch. This switch is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents. The on resistance profile of the ADG419BR is very flat over the full analog input range, ensuring excellent linearity and low distortion. Each switch of the ADG419BR conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG419BR exhibits break-before-make switching action.

Parametrics

ADG419BR absolute maximum ratings: (1)Vdd to Vss: 44V; (2)Vdd to GND: -0.3V to +25V; (3)VSS to GND: +0.3V to +25V; (4)VL to GND: -0.3V to Vdd + 0.3V (5)Analog, Digital Inputs Vss: -2 V to Vdd + 2 V; (6)Operating Temperature Range Industrial: -40℃ to +125℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: 150℃; (9 CERDIP Package, Power Dissipation: 600 mW; (10)θJA, Thermal Impedance: 110℃/W; (11)θJA, Thermal Impedance: 205℃/W.

Features

ADG419BR features: (1)44 V supply maximum ratings; (2)VSS to VDD analog signal range; (3)Low on resistance: <35 Ω; (4)Ultralow power dissipation: < 35 μW; (5)Fast transition time: 160 ns maximum; (6)Break-before-make switching action; (7)Plug-in replacement for DG419.
