Product Summary
The AO3402 is an N-Channel Enhancement Mode Field Effect Transistor. It uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications.
Parametrics
AO3402 absolute maximum ratings: (1)Drain-Source Voltage: 30 V; (2)Gate-Source Voltage: ± 12 V; (3)Continuous Drain Current TA=25℃: 4 A; (4)Continuous Drain Current TA=70℃: 3.2 A; (5)Pulsed Drain Current: 15 A; (6)Power Dissipation TA=25℃: 1.4 W; (7)Power Dissipation TA=70℃: 0.9 W; (8)Junction and Storage Temperature Range: -55℃ to 150℃.
Features
AO3402 features: (1)VDS: 30V; (2)ID (at VGS=-10V): 4.0A; (3)RDS(ON) (at VGS=-10V): < 52mΩ; (4)RDS(ON) (at VGS =-4.5V): < 65mΩ; (5)RDS(ON) (at VGS=-2.5V): < 85mΩ.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

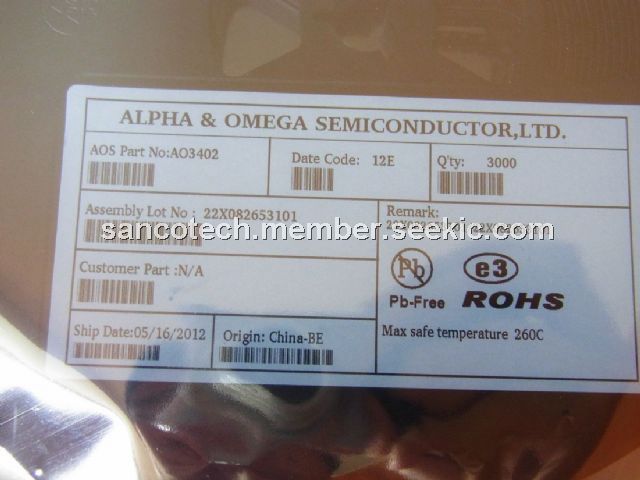

AO3402 |
MOSFET N-CH 30V 4.0A SOT23 |
Data Sheet |
|
|
||||||||||||
AO3402L |
Other |
Data Sheet |
Negotiable |
|
