Product Summary

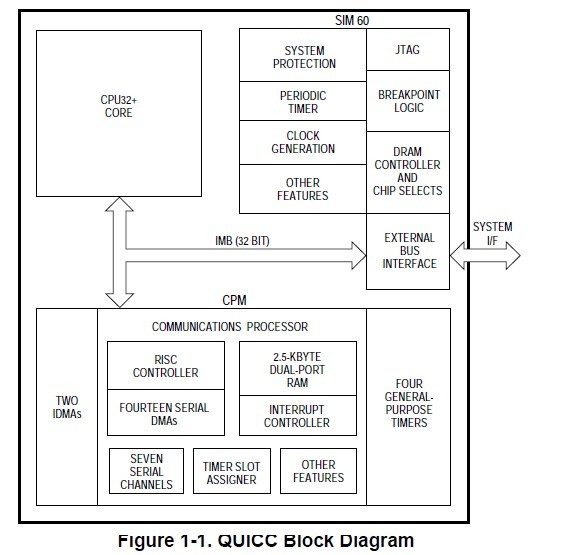

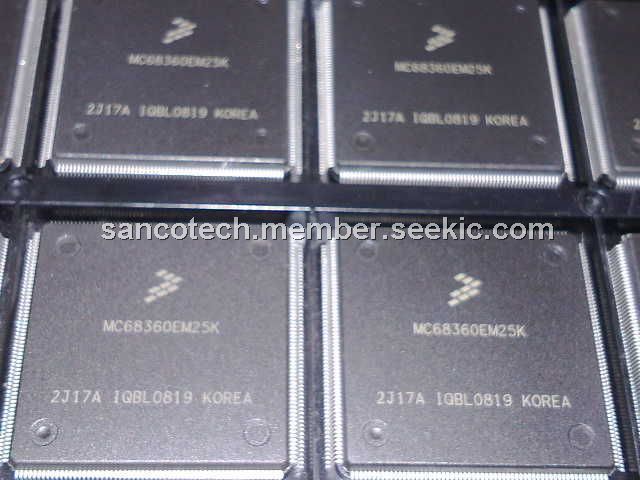

The MC68360EM33K is 32-bit controller that is an extension of other members of the Motorola M68300 family. Like other members of the M68300 family, the MC68360EM33K incorporates the intermodule bus (IMB). The MC68360EM33K is comprised of three modules: the CPU32+ core, the SIM60, and the CPM. Each module utilizes the 32-bit IMB.
Parametrics
MC68360EM33K absolute maximum ratings: (1)Supply Voltage, VCC: –0.3 to +6.5V; (2)Input Voltage, Vin: –0.3 to +6.5V; (3)Operating Temperature Range, TA: 0 to 70 or –40 to +85℃; (4)Maximum operating Junction Temperature (BGA only), TJ: 115℃; (5)Minimum operation Ambient Temperature (BGA only), TA: 0℃; (6)Storage Temperature Range, Tstg: –55 to +150℃.
Features
MC68360EM33K features: (1)CPU32+ Processor (4.5 MIPS at 25 MHz); (2)Up to 32-Bit Data Bus (Dynamic Bus Sizing for 8 and 16 Bits); (3)Up to 32 Address Lines (At Least 28 Always Available); (4)Complete Static Design (0–25-MHz Operation); (5)Slave Mode To Disable CPU32+ (Allows Use with External Processors); (6)Memory Controller (Eight Banks); (7)Four General-Purpose Timers; (8)Two Independent DMAs (IDMAs).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MC68360EM33K |
Freescale Semiconductor |
IC MPU QUICC 33MHZ 240-FQFP |
Data Sheet |
Negotiable |
|
|||||
