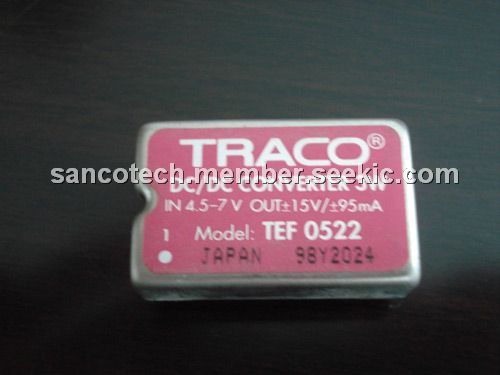

Product Summary

The TEF0522 is a member of the isolated dc/dc-converter family that offers a cost effective solution for applications requiring miniature size and high performance features. SMT-design with exclusive use of ce-ramic capacitors guarantees a very high reliability with an MTBF of over 1’000’000 hours. A highly automated production with 100% parameter test ensures a high quality standard of this product.

Parametrics

TEF0522 absolute maximum ratings: (1)Input voltage range: 4.5 to 7 VDC; (2)Output voltage: ±15 VDC; (3)Output current max.: ± 95 mA; (4)Operating Temperature range: 25℃ to 75℃.

Features

TEF0522 features: (1)Full SMD design with Ceramic Capacitors; (2)Wide 2:1 Input range; (3)High Efficiency; (4)Short Circuit Protection; (5)Metal Case, 24-Pin DIP; (6)2 Year Product Warranty.

Diagrams

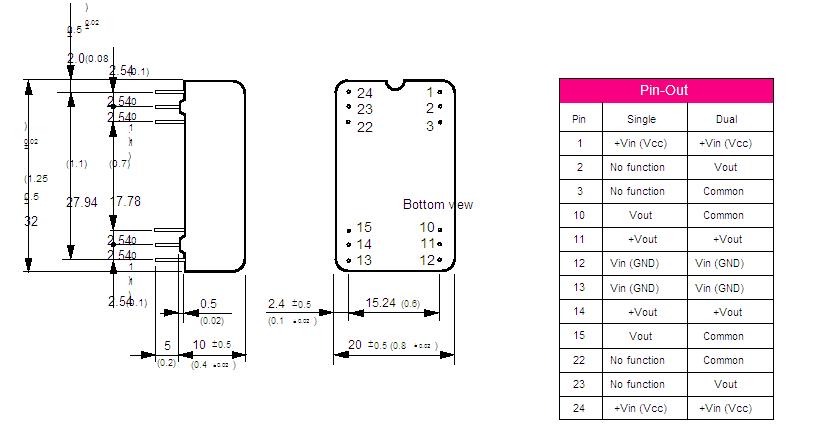

TEF0522 package dimensions
