Product Summary

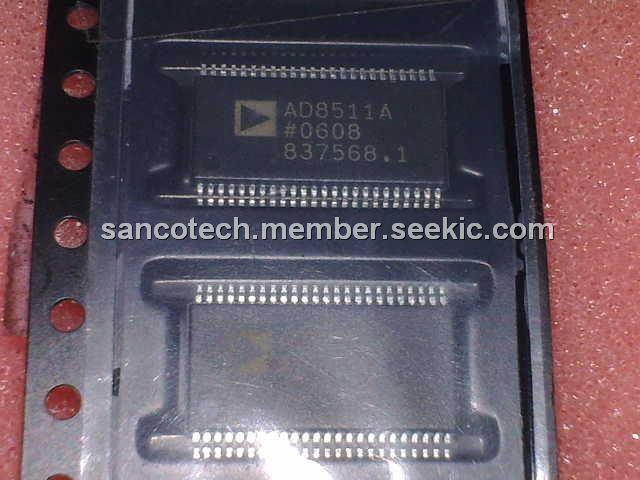

The AD8511ARUZ is a 11-channel LCD reference buffer, respectively, designed to drive 64 gray scale column drivers. Each buffer has an A/B input to select between two voltages for LCD displays. The AD8511ARUZ drives the resistor ladders of LCD column drivers for gamma correction. These LCD drivers have higher slew rates and higher output drive currents than similar competitive parts. This increases the stability of the reference ladder, resulting in better gray scale and visual performance. The AD8511ARUZ is used in LCD line inversion gamma references.
Parametrics
AD8511ARUZ absolute maximum ratings: (1)Supply Voltage: 7 V; (2)Input Voltage: GND to VS; (3)Storage Temperature Range RU Package: -65℃ to +150℃; (4)Operating Temperature Range: -40℃ to +85℃; (5)Junction Temperature Range RU Package: -65℃ to +150℃; (6)Lead Temperature Range (Soldering, 60 sec): 300℃.
Features
AD8511ARUZ features: (1)Single-supply operation: 3.3 V to 6.5 V; (2)High output current: 300 mA; (3)Low supply current: 6 mA; (4)Stable with 1000 pF loads; (5)Pin-compatible with LMC6009; (6)Pin-compatible with CL-FP6131; (7)48-lead, Pb-free, TSSOP package.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD8511ARUZ-REEL |
IC MUX LCD DVR 11CH 3.3V 48TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
