Product Summary
The AD8628ARZ-REEL is an Input/Output Operational Amplifier. It provides benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices new topology, the AD8628ARZ-REEL combines low cost with high accuracy and low noise. (No exter-nal capacitor is required.) In addition, the AD8628ARZ-REEL greatly reduces the digital switching noise found in most chopper-stabilized amplifiers.
Parametrics
AD8628ARZ-REEL absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: -0.3 V to VS- + 0.3 V; (3)Differential Input Voltage: ±5.0 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range R, RM, RT, UJ Packages: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +125℃; (7)Junction Temperature Range R, RM, RT, UJ Packages: -65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 s): 300℃.
Features
AD8628ARZ-REEL features: (1)Lowest auto-zero amplifier noise; (2)Low offset voltage: 1 μV; (3)Input offset drift: 0.002 μV/℃; (4)Rail-to-rail input and output swing; (5)5 V single-supply operation; (6)High gain, CMRR, and PSRR: 120 dB; (7)Very low input bias current: 100 pA max; (8)Low supply current: 1.0 mA; (9)Overload recovery time: 10 μs; (10)No external components required.

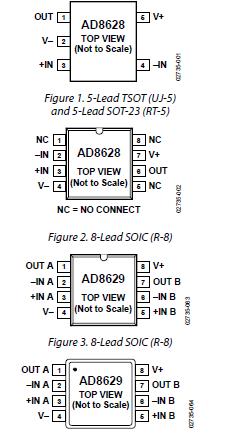

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8628ARZ-REEL |
|
IC OPAMP CHOPPER R-R 30MA 8SOIC |
Data Sheet |
|
|
||||||
|
AD8628ARZ-REEL7 |
|
IC OPAMP CHOPPER R-R 30MA 8SOIC |
Data Sheet |
|
|
||||||
