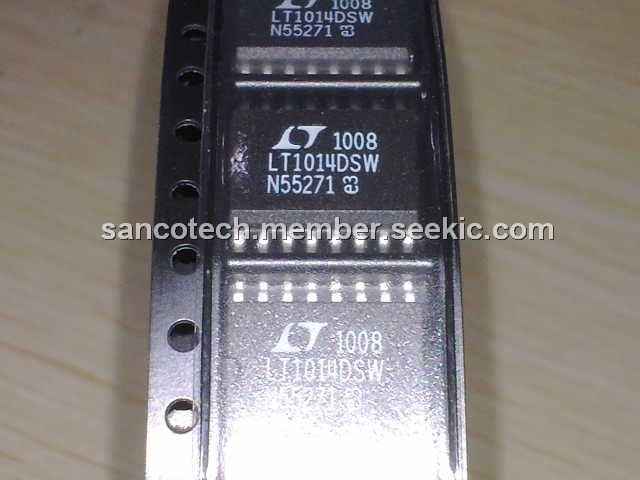

Product Summary
The LT1014DSW is a quad precision Op Amp. TheLT1014DSW is the first precision quad operational amplifier which directly upgrades designs in the industry standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration. It is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The LT1014DSW low offset voltage of 50μV, drift of 0.3μV/℃, offset current of 0.15nA, gain of 8 million, common mode rejection of 117dB and power supply rejection of 120dB qualify it as four truly precision operational amplifiers.
Parametrics
LT1014DSW absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage, Equal to Positive Supply Voltage: 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range; (6)All Grades: –65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LT1014DSW features: (1)Pin Compatible to 1458 and 324 with Precision Specs; (2)Guaranteed Offset Voltage: 150μV Max; (3)Guaranteed Low Drift: 2μV/℃ Max; (4)Guaranteed Offset Current: 0.8nA Max; (5)Guaranteed High Gain 5mA Load Current: 1.5 Million Min. 17mA Load Current: 0.8 Million Min; (6)Guaranteed Low Supply Current: 500μA Max; (7)Low Voltage Noise, 0.1Hz to 10Hz: 0.55μVp-p; (8)Low Current Noise—Better than 0P-07, 0.07pA/√Hz.

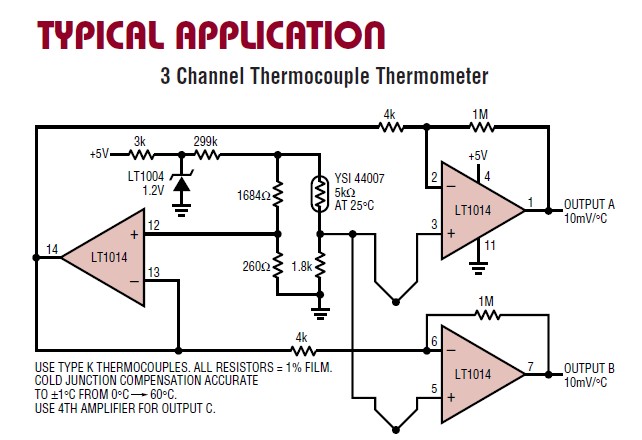

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1014DSW |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1014DSW#PBF |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1014DSW#TR |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1014DSW#TRPBF |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||||||
