Product Summary

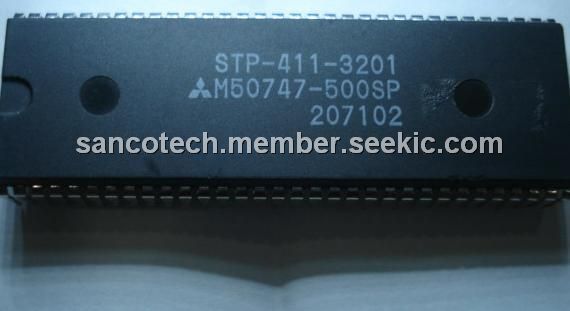

The M50747500SP is a Singal-Chip 8-Bit CMOS Microcomputer. It is designed with CMOS silicon gate lechnology. The M50747500SP is housed in a 64- pin shrink plastic molded DIP. This single- chip mocrocomputer is useful for business equipment and other consumer applications.

Parametrics

M50747500SP absolute maximum ratings: (1)supply voltage: -0.3 Vto 7 V; (2)input voltage: -0.3 V to 7 V; (3)ouput voltage: -0.3 V to VCC + 0.3 V; (4)power dissipation: 1000mW; (5)Operating temperature: -10℃ to 70℃; (6)storage temperature: -40℃ to 125℃.

Features

M50747500SP features: (1)instruction execution time: 1 μs; (2)single power supply: 5V ±10%; (3)Sbroutine nesting: 128 levels; (4)interrupt: 7 types, 5 vecters; (5)8- bit timer.

Diagrams

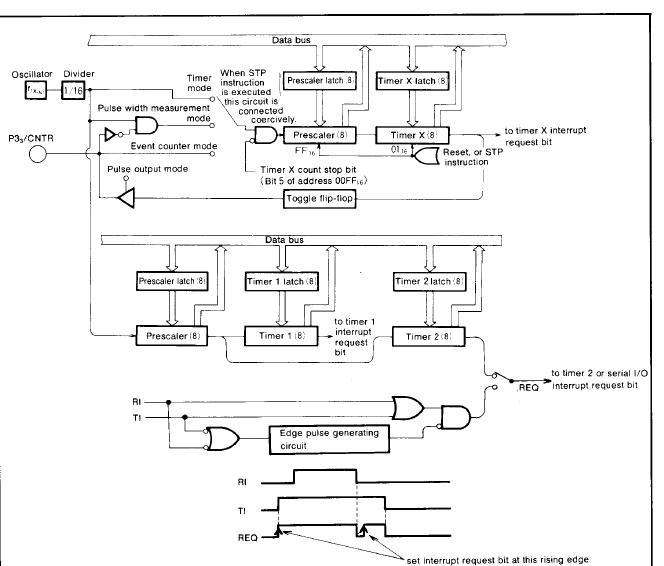

M50747500SP block diagram
